5330-00-830-1199

Nonmetallic Channel Seal

5330008301199 008301199 207C5-22 23-64 207-5-2223-64 207F5 207C5

An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL. View more Nonmetallic Channel Seal

5330-00-830-1199 SEAL,NONMETALLIC CHANNEL 5330008301199 008301199

Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
May 2023
NATO Update Count
3
NATO Data Quality
AAGR Style K5 for 5330-00-830-1199 1/2
NSN 5330-00-830-1199 (Identification) 1/2
CTNK Style K4A for 5330-00-830-1199 2/2
NSN 5330-00-830-1199 (Identification) 2/2

5330-00-830-1199 Stock and Availability Marketplace 5330-00-830-1199

Need Help?
Request a Quotation from participating marketplace vendors

5330-00-830-1199 Related Documents Related Documents 5330-00-830-1199 2+ Documents (More...)

207C5-22 23-64 207-5-2223-64 207F5 207C5 An item fabricated from NONMETALLIC CHANNEL.
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 207C5
Every Day 5330-00-830-1199 RQST NE Related Documents 5330-00-830-1199 2+ Documents ( More... ) https
A6789 9063004 RNVC 2 DAC 5 A6789 05584 - Autodyne https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-830-1199
Nonmetallic Channel Seal 5330008301199 Account Upgrade 5330-00-830-1199Nonmetallic Channel Seal5330008301199
008301199 207C5-22 23-64 207-5-2223-64 -64 SEAL,NONMETALLIC CHANNEL 14 EA NS Request Quotation Subscribe

5330-00-830-1199 Demil Restrictions 5330-00-830-1199

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: P | PMIC: U | EDC: | ADPEC:

5330-00-830-1199 is a Nonmetallic Channel Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.

5330-00-830-1199 HTS and ScheduleB Import and Export 5330-00-830-1199

5330-00-830-1199 End Users End Users 5330-00-830-1199

US Air Force (FXGI)
Effective Date:
1 Mar 2005
Former MOE Rule:
FXKZ

5330-00-830-1199 Manufacturers Approved Sources 5330-00-830-1199

5330-00-830-1199 Technical Data Datasheet 5330-00-830-1199

Characteristic
Specifications
FIIG
A032A0
Material [MATT]
Rubber Synthetic Overall
Construction [CQCF]
Solid

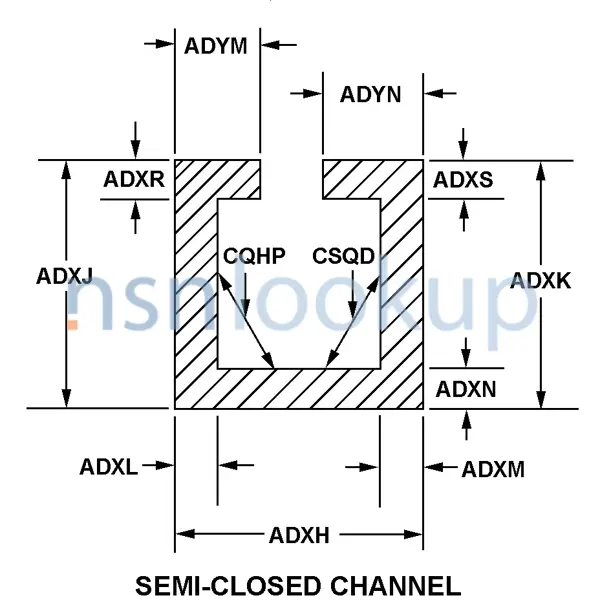

Cross-Sectional Shape Style [AAGR]
Semi-Closed Channel
Web Width [ADXH]
0.062 Inches Nominal
Left Side Flange Height [ADXJ]
0.359 Inches Nominal
Right Side Flange Height [ADXK]
0.359 Inches Nominal
Left Side Flange Thickness [ADXL]
0.141 Inches Nominal
Right Side Flange Thickness [ADXM]
0.141 Inches Nominal
Web Thickness [ADXN]
0.125 Inches Nominal
Left Side Top Flange Thickness [ADXR]
0.125 Inches Nominal
Right Side Top Flange Thickness [ADXS]
0.125 Inches Nominal
Left Side Top Flange Width [ADYM]
0.375 Inches Nominal
Right Side Top Flange Width [ADYN]
0.375 Inches Nominal
Left Inside Angle [CQHP]
90.0 Degrees Nominal
Right Inside Angle [CSQD]
90.0 Degrees Nominal
Overall Length [ABHP]
22.094 Inches Nominal

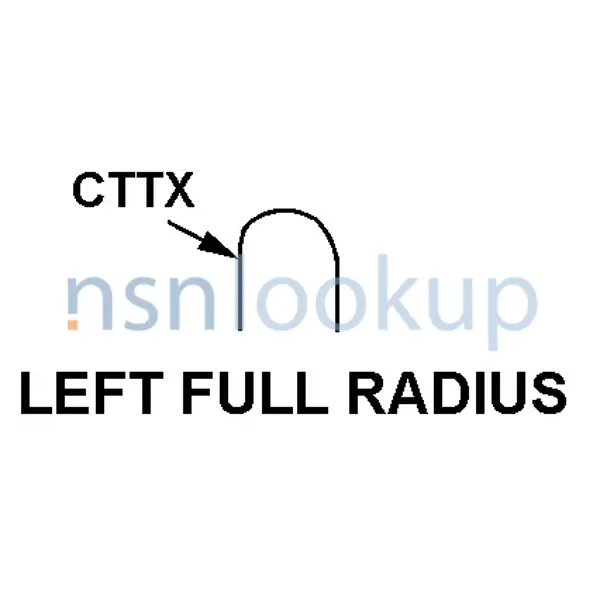

Left Tip Style [CTNK]
Left Full Radius
Left Tip Radius [CTTX]
0.062 Inches Nominal
Right Tip Relationship With Left Tip [CTNL]
Identical
Right Tip Radius [CTTY]
0.062 Inches Nominal

5330-00-830-1199 Weapon Systems (WSDC) Weapon Systems (WSDC) 5330-00-830-1199

5330-00-830-1199 Stock, Inventory and Procurement DLA Procurement Analysis 5330-00-830-1199

DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...
