5330-00-814-6675

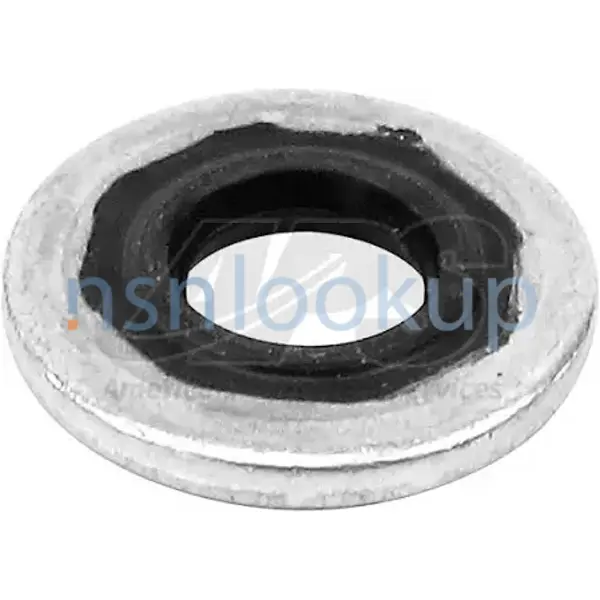

Packing With Retainer
5330008146675 008146675 18559 600-0102-3/8 7033684 D2968-1 F18003 1JA8690H05 65175 110 3-8 858167REVBPT17 125003 12503 5330006322098 T20-0084 5330PL1383002
An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, and the like, between fixed surfaces and a cylindrical item passing through it. Excludes SEAL,PLAIN,ENCASED. View more Packing With Retainer
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
46
46
NATO Data Quality
Marketplace 5330-00-814-6675
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day 5330-00-814-6675 RQST NE
Updated Every Day 5330-00-814-6675 RQST
Updated Every Day 5330-00-814-6675 RQST NE
Related Documents 5330-00-814-6675 5+ Documents (More...)
Request Subscribe to View Vendor Details... 11038 PACKING WITH RETAINER 1 EA NS Request Quotation 12503
PACKING WITH RETAINER 11 EA NS Request Quotation Subscribe to View Vendor Details... 110-3-8 PACKING
PACKING WITH RETAINER 2 EA NS Request Quotation Subscribe to View Vendor Details... 18559 PACKING WITH
PACKING WITH RETAINER 11 EA NS Request Quotation Subscribe to View Vendor Details... 110-3-8 PACKING
PACKING WITH RETAINER 2 EA NS Request Quotation Subscribe to View Vendor Details... 18559 PACKING WITH
Request Subscribe to View Vendor Details... 11038 PACKING WITH RETAINER 1 EA NS Request Quotation 12503
PACKING WITH RETAINER 11 EA NS Request Quotation Subscribe to View Vendor Details... 110-3-8 PACKING
PACKING WITH RETAINER 24 EA NS Request Quotation Subscribe to View Vendor Details... 12503 PACKING WITH
PACKING WITH RETAINER 11 EA NS Request Quotation Subscribe to View Vendor Details... 110-3-8 PACKING
PACKING WITH RETAINER 24 EA NS Request Quotation Subscribe to View Vendor Details... 12503 PACKING WITH
Request Subscribe to View Vendor Details... 11038 PACKING WITH RETAINER 1 EA NS Request Quotation 12503
PACKING WITH RETAINER 11 EA NS Request Quotation Subscribe to View Vendor Details... 110-3-8 PACKING
PACKING WITH RETAINER 24 EA NS Request Quotation Subscribe to View Vendor Details... 12503 PACKING WITH
PACKING WITH RETAINER 11 EA NS Request Quotation Subscribe to View Vendor Details... 110-3-8 PACKING
PACKING WITH RETAINER 24 EA NS Request Quotation Subscribe to View Vendor Details... 12503 PACKING WITH
Subscribe to View Vendor Details... 29681 CONNECTOR https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-814-6675
Packing With Retainer 5330008146675 008146675 5330-00-814-6675 5330008146675 008146675 is an item
Packing With Retainer 5330008146675 008146675 5330-00-814-6675 5330008146675 008146675 is an item
299 701025 3110-00-529-9480 Bearing, ball 300 701077 3110-01-094-9268 Bearing, ball 301 Deleted 302 7033684
5330-00-814-6675 O-ring 303 7045881 Washer, seal 304 7084278 5330-00-678-7101 Gasket 305 709460 3110
5330-00-814-6675 O-ring 303 7045881 Washer, seal 304 7084278 5330-00-678-7101 Gasket 305 709460 3110
Restrictions 5330-00-814-6675
5330-00-814-6675 is a Packing With Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-00-814-6675
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-814-6675
- US Army (A919)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBD
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Poland (WP01)
- Effective Date:
- 1 Jun 2007
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5330-00-814-6675
- Part Number
- Manufacturer
- Status
- 600-0102-3/8
- Manufacturer
- 83259 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- 7033684
- 19207 - U S Army Tank Automotive Command (Active)
- Secondary Buy
- Secondary Buy
- D2968-1
- 36802 - Logansport Machine Co., Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- F18003
- 15277 - General Steel Tank Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1JA8690H05
- 97942 - Northrop Grumman Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- F18003
- 96105 - Funk Mfg Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 65175
- 93742 - Drs Naval Power Systems, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 110 3-8
- 25184 - Parker Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 858167REVBPT17
- 56232 - Lockheed Martin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 125003
- 29510 - Komatsu American Intl Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12503
- 29510 - Komatsu American Intl Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 18559
- 82796 - Coltec Industries Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5330008146675
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5330006322098
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- T20-0084
- 88812 - Tampo Industries Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5330PL1383002
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 18559
- 7PZX0 - Fairbanks Morse, Llc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5330-00-814-6675
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Construction [CQCF]
- One-Piece
- Material [MATT]
- Rubber Synthetic Packing
- Material [MATT]
- Steel Retainer
- Outside Diameter [ABHE]
- 0.687 Inches Nominal
- Retainer Thickness [ADTJ]
- 0.051 Inches Minimum And 0.057 Inches Maximum
- Packing Ring Cross-Sectional Diameter [ADTK]
- 0.072 Inches Nominal
- Packing Inside Diameter [AFFX]
- 0.401 Inches Minimum And 0.409 Inches Maximum
- Surface Treatment [SFTT]
- Cadmium Retainer
Weapon Systems (WSDC) 5330-00-814-6675
DLA Procurement Analysis 5330-00-814-6675
- Last Stock Position:
- 566 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-00-814-6675
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- R
- Refer To Aft095req
- AFT095REQ
- R
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5840-00-311-9024
- 4
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5330-00-814-6675
5330-37-555-7303 5330-15-154-3490 5330-14-526-0526 5330-16-001-3478 5330-12-191-5190 5330-33-203-7374 5330-14-559-1524 5330-14-413-7657 5330-14-396-9399 5330-14-560-3109 5330-98-204-8350 5330-16-001-0835 5330-14-487-5410 5330-15-158-6480 5330-12-318-1232 5330-14-543-3090 5330-14-514-8954 5330-14-570-1285
Freight Information 5330-00-814-6675
5330-00-814-6675 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5330-00-814-6675 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5330-00-814-6675 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5330-00-814-6675 is not classified as a special type of cargo when transported by water. 5330-00-814-6675 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-814-6675
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 5330-00-814-6675 7 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7L323P6747
- 28 Jul 2023
- Subscribe
- 1056
- Subscribe
- Subscribe
- Subscribe
- SPE7L122P6790
- 22 Jun 2022
- Subscribe
- 827
- Subscribe
- Subscribe
- Subscribe
- SPE7L322P4392
- 13 Apr 2022
- Subscribe
- 378
- Subscribe
- Subscribe
- Subscribe
- SPE7L322P1625
- 19 Nov 2021
- Subscribe
- 342
- Subscribe
- Subscribe
- Subscribe
- SPE5E117V1109
- 14 Mar 2017
- Subscribe
- 4820
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D9W06036U
- 02 Jun 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D9W06023Q
- 02 May 2016
- Subscribe
- 11
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5330-00-814-6675 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
