5330-00-801-4034
Preformed Packing
5330008014034 008014034 H87772 H87772-9
A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED. View more Preformed Packing
May 2023
4
Marketplace 5330-00-801-4034
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-801-4034 5+ Documents (More...)
H87772-9 PACKING 77 EA NS Request Quotation FedMall Updated Every 15 Minutes 5330-00-801-4034 BUY NE
shaped item with an aperture manufactured to predetermined dimensions and H87772-9 PACKING 77 EA NS
/www.nsnlookup.com /fsg-53/fsc-5331/us 5331-01-465-1638 Anchor Damper Ring 5331014651638014651638 H87772
Every Day 5331-01-465-1638 RQST NE Restrictions https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-801-4034
H87772-3 PACKING,PREFORMED 7 EA NS Request Quotation Updated Every Day 5330-00-564-2221 RQST NE Updated
//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-564-2221 Preformed Packing 5330005642221005642221 H87772
Preformed Packing 5330008014034 008014034 4573Preformed Packing5330002024573 002024573 H87772 https
H87772-15 PACKING,PREFORMED 34 EA NS Request Quotation https//www.nsnlookup.com /fsg-53/fsc-5330/us
//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-202-4573 Preformed Packing 5330002024573002024573 H87772
RQST NE Updated Every Day 5330-00-202-4573 RQST https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-801-4034
Restrictions 5330-00-801-4034
5330-00-801-4034 is a Preformed Packing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-00-801-4034
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-801-4034
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
Approved Sources 5330-00-801-4034
- Part Number
- Manufacturer
- Status
- H87772
- Manufacturer
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Source Control
- Source Control
- H87772-9
- 48482 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- H87772-9
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5330-00-801-4034
- Characteristic
- Specifications
- FIIG
- Specifications

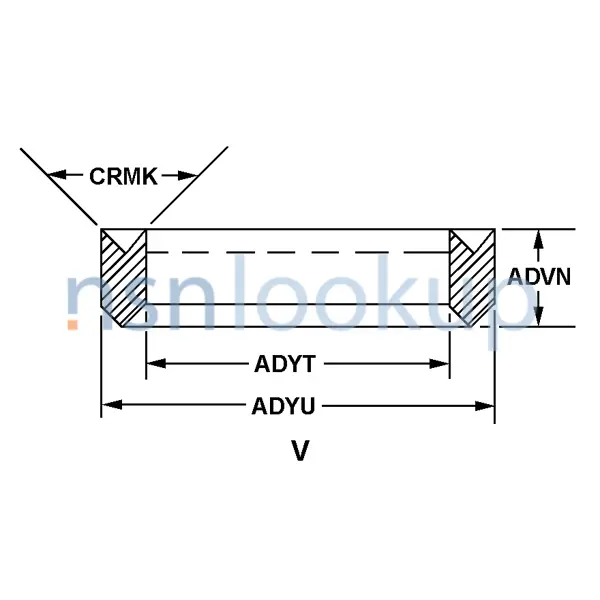

- A032A0
- Angle [CRMK]
- 90.0 Degrees Nominal
- Center Hole Diameter [ADYT]
- 2.625 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- V
- Cross-Sectional Height [ADVN]
- 0.156 Inches Nominal
- Fsc Application Data [ZZZV]
- Arresting Gear,Aircraft Launching
- Hardness Rating [CQFM]
- 85.0 Shore Durometer A Minimum Overall And 95.0 Shore Durometer A Maximum Overall
- Material Document And Classification [MDCL]
- Mil-P-19918 Mil Spec Single Material Response Overall
- Material [MATT]
- Rubber Butadiene-Acrylonitrile Class Nbr Overall
- Peripheral Diameter [ADYU]
- 3.375 Inches Nominal
DLA Procurement Analysis 5330-00-801-4034
Management Data 5330-00-801-4034
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5330-00-801-4034
Freight Information 5330-00-801-4034
5330-00-801-4034 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-00-801-4034 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-00-801-4034 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-00-801-4034 is not classified as a special type of cargo when transported by water. 5330-00-801-4034 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-801-4034
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- Type I, shelf life
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5330-00-801-4034 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
