5330-00-786-5492
Packing Retainer
5330007865492 007865492 52-42284-1
An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE. View more Packing Retainer
November 2023
13
Marketplace 5330-00-786-5492
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-786-5492 3+ Documents (More...)
00-786-5492 RQST Updated Every Day 5330-00-786-5492 RQST NE Related Documents 5330-00-786-5492 3+ Documents
PACKING 1 EA NS Request Quotation Updated Every Day 5330-00-786-5492 RQST NE Updated Every Day 5330-
Retainer5330007865492 007865492 52-42284-1 RETAINER,PACKING 1 EA NS Request Quotation Subscribe to View
Vendor Details... 52-42284-1 RETAINER 80020 - Naval Air Warfare Center Aircraft (Active) Primary Buy
-1261 Seal 5330012171261 012171261,42284-1 item https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-786-5492
Packing Retainer 5330007865492 007865492 RETAINER,PACKING 1 EA NS Request Quotation Subscribe to
Restrictions 5330-00-786-5492
5330-00-786-5492 is a Packing Retainer that is specifically designed to be or selected as being nuclear hard. In addition it has other critical features such as tolerance, fit restrictions or application.Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-00-786-5492
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-786-5492
- US Navy (N1R5)
- Effective Date:
- 24 Feb 2013
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GHHD
- Supplementary Receivers:
- GG
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2014
- Supplementary Collaborators:
- GGKEHD
- France (ZF01)
- Effective Date:
- 1 Oct 1996
Approved Sources 5330-00-786-5492
- Part Number
- Manufacturer
- Status
- 52-42284-1
- Manufacturer
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Primary Buy
- Primary Buy
- 52-42284-1
- 1QX62 - Industrial Marine, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 52-42284-1
- 1UF60 - U.S.A. Spares Inc. (Active)
- Secondary Buy
- Secondary Buy
- 52-42284-1
- 3DDL3 - Billet Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- 52-42284-1
- 81A16 - York Precision Machining And (Active)
- Secondary Buy
- Secondary Buy
- 52-42284-1
- 58078 - Airtronics, Llc (Active)
- Secondary Buy
- Secondary Buy
- 52-42284-1
- 4J831 - Acr Machine Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 52-42284-1
- 5RX62 - Day Tool & Mfg. Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 52-42284-1
- 6JRD9 - Wellman Dynamics Machining And (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5330-00-786-5492

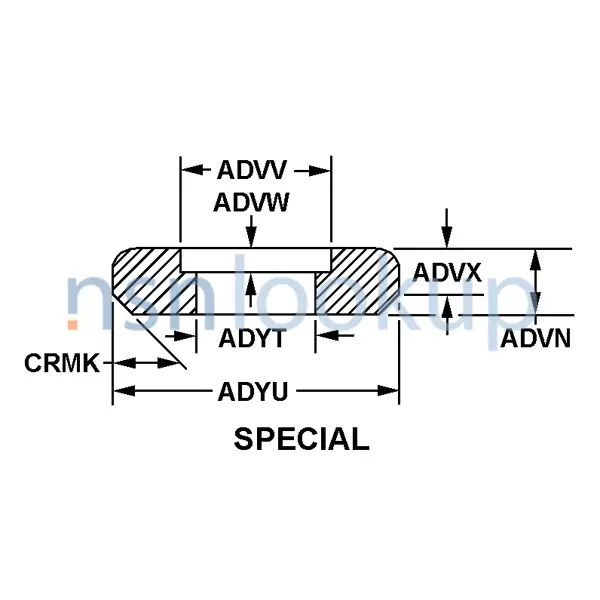

- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- End Item Identification [AGAV]
- 4R/5R Cog Items Managed By Braso
- Angle [CRMK]
- 15.0 Degrees Nominal
- Attachment Feature Circle Diameter [ADTQ]
- 16.000 Inches Nominal Single Circle
- Attachment Feature Quantity [ADTL]
- 12
- Attachment Hole Diameter [ADTM]
- 0.531 Inches Nominal
- Attachment Method [ABSX]
- Round Hole
- Body Recess Depth [ADVW]
- 0.438 Inches Nominal
- Body Recess Diameter [ADVV]
- 18.500 Inches Minimum And 18.531 Inches Maximum
- Center Hole Diameter [ADYT]
- 13.984 Inches Minimum And 14.016 Inches Maximum
- Criticality Code Justification [CRTL]
- Agav
- Cross-Sectional Height [ADVN]
- 1.125 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Special
- Fsc Application Data [ZZZV]
- Arresting Gear,Aircraft Landing
- Material Document And Classification [MDCL]
- Mil-S-22698,Ty 1,Cl C Mil Spec Single Material Response Overall
- Material [MATT]
- Steel Uns K02708 Overall
- Rim Surface Width [ADVX]
- 0.687 Inches Nominal
- Peripheral Diameter [ADYU]
- 19.844 Inches Minimum And 19.875 Inches Maximum
- Special Features [FEAT]
- Attachment Holes Are Counterbored 1.188 In. Dia By 0.312 In. Deep
Weapon Systems (WSDC) 5330-00-786-5492
DLA Procurement Analysis 5330-00-786-5492
- Last Stock Position:
- 21 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-00-786-5492
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material ID:
- EY
- 4R/5R Cog Items Managed by BRASO
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5330-00-786-5492
Freight Information 5330-00-786-5492
5330-00-786-5492 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5330-00-786-5492 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5330-00-786-5492 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5330-00-786-5492 is not classified as a special type of cargo when transported by water. 5330-00-786-5492 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
