5330-00-618-0090
Nonmetallic Channel Seal
5330006180090 006180090 4L5 UL4102-1PC13 A643PC2
An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL. View more Nonmetallic Channel Seal
November 2023
18
Marketplace 5330-00-618-0090
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-618-0090 5+ Documents (More...)
(Identification) 1/3 NSN 5330-00-618-0090 (Identification) 2/3 NSN 5330-00-618-0090 (Identification
SEAL 3 EA NS Request Quotation Updated Every Day 5330-00-618-0090 RQST NE Updated Every Day 5330-00-
Every Day 4720-01-141-0218 RQST NE Restrictions https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-618-0090
4720011410218011410218 day Upgrade your Account Upgrade 4720-01-141-0218Nonmetallic Tubing4720011410218 011410218P5068-4-4L5
11935-4L5 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip
/fsg-53/fsc-5305/us 5305-01-394-1200 Close Tolerance Screw 5305013941200013941200 ST3M733-4L511935-4L5
Nonmetallic Channel Seal 5330006180090,4L5 www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-618-0090
1897350218529407 218529407,4L,5-189 CL903-153/4L https Incomplete Secondary Reference RNCC 5 RNVC 1 DAC 6 4L5
Updated Every Day 5905-00-101-6829 RQST NE Related https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-618-0090
Nonmetallic Channel Seal 5330006180090,4L5 141-0218 Part NumberManufacturerStatusP5068-4-4L5 https
Restrictions 5330-00-618-0090
5330-00-618-0090 is a Nonmetallic Channel Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-00-618-0090
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-618-0090
- US Coast Guard (C918)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- C911
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHXHD
- Poland (WP01)
- Effective Date:
- 1 Jul 2005
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5330-00-618-0090
- Part Number
- Manufacturer
- Status
- 4L5
- Manufacturer
- 12763 - Dynalec Corporation (Active)
- Primary Buy
- Primary Buy
- A643PC2
- 12763 - Dynalec Corporation (Active)
- Primary Buy
- Primary Buy
- UL4102-1PC13
- 12763 - Dynalec Corporation (Active)
- Primary Buy
- Primary Buy
- A643PC2
- 20049 - The Electric Tachometer Corp. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- UL4102-1PC13
- 20049 - The Electric Tachometer Corp. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 4L5
- 20049 - The Electric Tachometer Corp. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5330-00-618-0090
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Material [MATT]
- Rubber Butadiene-Styrene Class Sbr Overall
- Material Document And Classification [MDCL]
- Mil-R-900 Mil Spec Single Material Response Overall
- Construction [CQCF]
- Solid

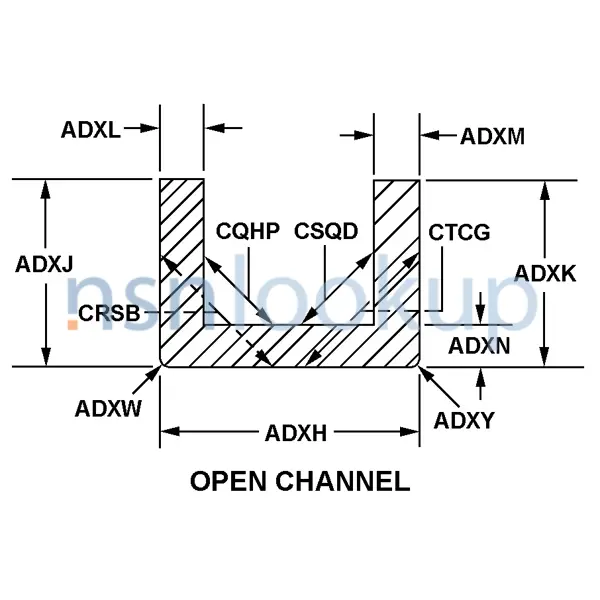

- Cross-Sectional Shape Style [AAGR]
- Open Channel
- Web Width [ADXH]
- 0.344 Inches Nominal
- Left Side Flange Height [ADXJ]
- 0.219 Inches Nominal
- Right Side Flange Height [ADXK]
- 0.219 Inches Nominal
- Left Side Flange Thickness [ADXL]
- 0.047 Inches Nominal
- Right Side Flange Thickness [ADXM]
- 0.047 Inches Nominal
- Web Thickness [ADXN]
- 0.047 Inches Nominal
- Left Side Flange Thickness At Web [ADXP]
- 0.047 Inches Nominal
- Right Side Flange Thickness At Web [ADXQ]
- 0.047 Inches Nominal
- Left Flange Outer Radius At Web [ADXW]
- 0.047 Inches Nominal
- Right Flange Outer Radius At Web [ADXY]
- 0.047 Inches Nominal
- Left Inside Angle [CQHP]
- 90.0 Degrees Nominal
- Right Inside Angle [CSQD]
- 90.0 Degrees Nominal
- Left Outside Angle [CRSB]
- 90.0 Degrees Nominal
- Right Outside Angle [CTCG]
- 90.0 Degrees Nominal
- Style Designator [STYL]
- Circular
- Aperture Diameter [ABVL]
- 4.500 Inches Nominal
- Left Tip Style [CTNK]
- Left Square End
- Right Tip Relationship With Left Tip [CTNL]
- Identical
Weapon Systems (WSDC) 5330-00-618-0090
DLA Procurement Analysis 5330-00-618-0090
- Last Stock Position:
- 45 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-00-618-0090
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5330-00-618-0090
Freight Information 5330-00-618-0090
5330-00-618-0090 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-00-618-0090 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-00-618-0090 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-00-618-0090 is not classified as a special type of cargo when transported by water. 5330-00-618-0090 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-618-0090
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- No Requirements
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
