5330-00-611-0620
Gasket
5330006110620 006110620 C72452
A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR. View more Gasket
May 2023
14
Marketplace 5330-00-611-0620
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-611-0620 4+ Documents (More...)
BUY NE FedMall Updated Every Day 5330-00-611-0620 RQST NE Updated Every Day 5330-00-611-0620 RQST
Updated Every Day 5330-00-611-0620 RQST NE Related Documents 5330-00-611-0620 4+ Documents ( More...
//www.nsnlookup.com /fsg-75/fsc-7530/de 7530-12-319-4389 Recording Instrument Chart 7530123194389 C72452
www.nsnlookup.com /fsg-75/fsc-7530/de 7530-12-319-4389 https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-611-0620
//www.nsnlookup.com /fsg-75/fsc-7530/de 7530-12-185-2495 Recording Instrument Chart 7530121852495 C72452
Envelope 7530218460329 218460329,C26 Mailing Envelope 7530218460329218460329,C26 RNCC 3 RNVC 2 DAC 3 C72452
JavaScript in your web browser . 7530-12-185-2495Recording Instrument Chart7530121852495 121852495 C72452
A94 www.nsnlookup.com /fsg-75/fsc-7530/de 7530-12-185-2495 Recording Instrument Chart 7530121852495 C72452
Restrictions 5330-00-611-0620
5330-00-611-0620 is a Gasket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5330-00-611-0620
- US Air Force (FUGI)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- FUKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Supplementary Collaborators:
- HD
Approved Sources 5330-00-611-0620
- Part Number
- Manufacturer
- Status
- C72452
- Manufacturer
- 66544 - Frontgrade Technologies Inc. (Active)
- Primary Buy
- Primary Buy
- C72452
- 80006 - Litton Systems Inc (Obsolete)
- Original Design
- Original Design
Datasheet 5330-00-611-0620
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0

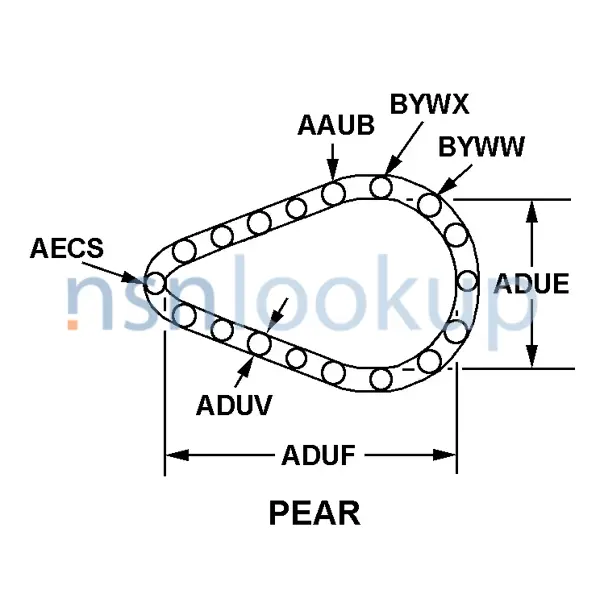

- Aperture Length [ADUF]
- 22.130 Inches Nominal
- Aperture Width [ADUE]
- 13.380 Inches Nominal
- Bearing Surface Width [ADUV]
- 1.120 Inches Nominal
- Bolt Hole Quantity [AECS]
- 17
- Cross-Sectional Shape Style [AAGR]
- Solid Single Or Composition
- Cross-Sectional Thickness [ADVM]
- 0.060 Inches Nominal
- Hole Diameter [AAUB]
- 0.270 Inches Minimum And 0.310 Inches Maximum
- Material [MATT]
- Rubber Chloroprene Class Cr Overall
- Special Features [FEAT]
- Used On Surveillance And Warning Systems
- Style Designator [STYL]
- Pear
DLA Procurement Analysis 5330-00-611-0620
Management Data 5330-00-611-0620
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- ZW
- SURVEILLANCE AND WARNING SYSTEMS SURVEILLANCE AND WARNING PROJECTS GROUND IDENTIFICATION AND RECOGNITION EQUIPMENT (COMMOM) 441A RADAR SYSTEM (AN/FPS/95), WESTPACNORTH (WPN) COMPATABILITY SYSTEM
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5330-00-611-0620
Freight Information 5330-00-611-0620
5330-00-611-0620 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-00-611-0620 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-00-611-0620 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-00-611-0620 is not classified as a special type of cargo when transported by water. 5330-00-611-0620 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-611-0620
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- Type I, shelf life
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5330-00-611-0620 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
