5330-00-498-6341
Packing Retainer
5330004986341 004986341 10935478
An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE. View more Packing Retainer
November 2023
23
Marketplace 5330-00-498-6341
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-498-6341 5+ Documents (More...)
5330-00-498-6341 40 38 19207 10935536 https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-498-6341
Packing Retainer 5330004986341 004986341 -411-8330 58 3 19207 10935476 5120-00-789-4881 81 23 19207 10935478
5330-00-498-6341 40 38 19207 https//www.nsnlookup.com /equipment-intelligence/land/engines/avds1790/
Packing Retainer 5330004986341 004986341 24P Parts Manual for AVDS-1790-2CA AVDS-1790-2DA and AVDS
5330-00-498-6341 42 46 19207 10935536 4730-00-902-3188 39 8 19207 10935537 5330-00-902-3189 32 22 19207
5330-00-498-6341 42 46 19207 10935536 4730-00-902-3188 39 8 19207 10935537 5330-00-902-3189 32 22 19207
34P Parts Manual for AVDS-1790-2CA, AVDS-1790-2DA and AVDS-1790-2DR Page 333 -789-4881 84 23 19207 10935478
5330-00-498-6341 40 38 19207 10935536 4730-00-902-3188 37 8 19207 10935537 5330-00-902-3189 55 22 19207
Restrictions 5330-00-498-6341
5330-00-498-6341 is a Packing Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-00-498-6341
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-498-6341
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Dec 2011
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Jan 2003
Approved Sources 5330-00-498-6341
- Part Number
- Manufacturer
- Status
- 10935478
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 5330004986341
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference

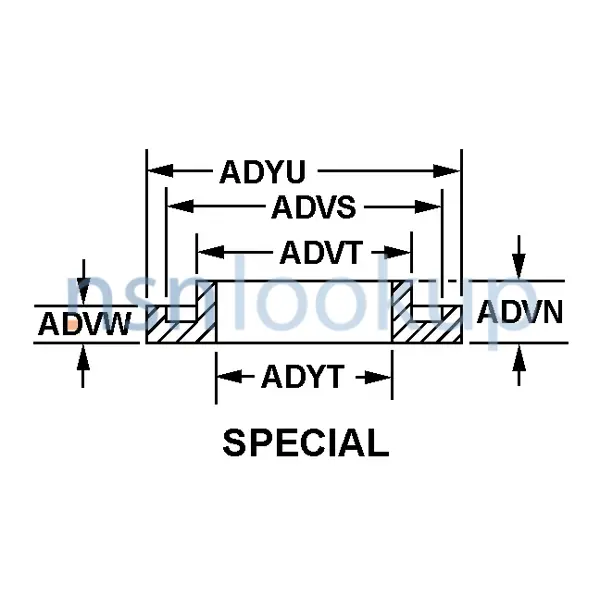

Datasheet 5330-00-498-6341
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Body Recess Depth [ADVW]
- 0.140 Inches Nominal
- Center Hole Diameter [ADYT]
- 0.400 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Special
- Cross-Sectional Height [ADVN]
- 0.280 Inches Minimum And 0.290 Inches Maximum
- Flanged Body Outside Diameter [ADVT]
- 0.560 Inches Nominal
- Material [MATT]
- Steel Comp 1020 Overall
- Lip Inside Diameter [ADVS]
- 1.090 Inches Minimum And 1.100 Inches Maximum
- Peripheral Diameter [ADYU]
- 1.190 Inches Nominal
Weapon Systems (WSDC) 5330-00-498-6341
DLA Procurement Analysis 5330-00-498-6341
- Last Stock Position:
- 159 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-00-498-6341
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5330-00-498-6341
Freight Information 5330-00-498-6341
5330-00-498-6341 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5330-00-498-6341 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5330-00-498-6341 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5330-00-498-6341 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5330-00-498-6341 is not classified as a special type of cargo when transported by water. 5330-00-498-6341 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-498-6341
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5330-00-498-6341 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
