5330-00-373-8372
Preformed Packing
5330003738372 003738372 204885
A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED. View more Preformed Packing
May 2023
3
Marketplace 5330-00-373-8372
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-373-8372 5+ Documents (More...)
United States (US) 4. 5330-00-373-8372 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 5330-00-373-8372
Preformed Packing 5330003738372 003738372 for $1 a day Upgrade your Account Upgrade 5330-00-373
-8372Preformed Packing5330003738372 003738372 204885 4935996619697 996619697,204885 browser . 4935-99
Managed by United States NSN https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-373-8372 Preformed
Packing 5330003738372 003738372 for $1 a day Upgrade your Account Upgrade 5330-00-373-8372Preformed
4885 07-204885 Managed by United States NSN Created on 1 Jan 1963 Data Last Changed January 2023 NATO
Preformed Packing 5330003738372 003738372 for $1 a day Upgrade your Account Upgrade 5330-00-373
4885 07-204885 Managed by United States NSN Created on 1 Jan 1963 Data Last Changed January 2023 NATO
488507-204885 Managed by United States NSN Created on 1 Jan 1963 Data Last Changed January 2023 NATO
Restrictions 5330-00-373-8372
5330-00-373-8372 is a Preformed Packing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-00-373-8372
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-373-8372
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5330-00-373-8372
- Part Number
- Manufacturer
- Status
- 204885
- Manufacturer
- 77445 - Rtx Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5330-00-373-8372
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0

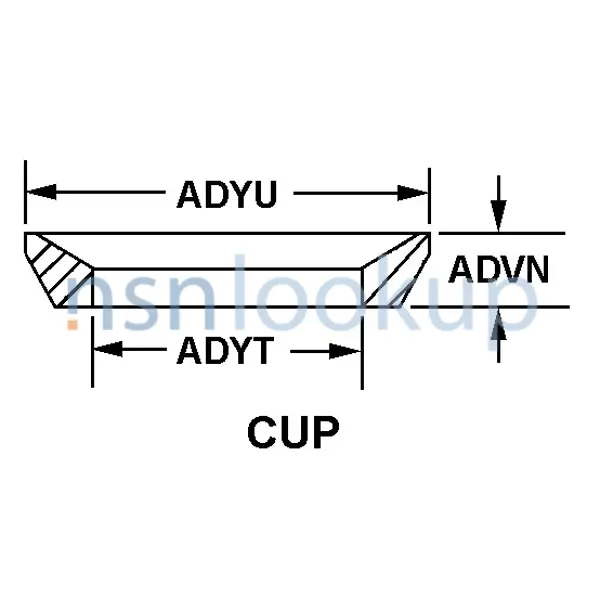

- Center Hole Diameter [ADYT]
- 1.430 Inches Nominal
- Color [HUES]
- Black
- Cross-Sectional Shape Style [AAGR]
- Cup
- Cross-Sectional Height [ADVN]
- 0.440 Inches Nominal
- Hardness Rating [CQFM]
- 45.0 Shore Durometer A Minimum Overall And 55.0 Shore Durometer A Maximum Overall
- Material [MATT]
- Rubber Chloroprene Class Cr Overall
- Material Document And Classification [MDCL]
- Ams 3208 Assn Std Single Material Response Overall
- Peripheral Diameter [ADYU]
- 2.700 Inches Nominal
DLA Procurement Analysis 5330-00-373-8372
Management Data 5330-00-373-8372
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5330-00-373-8372
Freight Information 5330-00-373-8372
5330-00-373-8372 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-00-373-8372 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-00-373-8372 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-00-373-8372 is not classified as a special type of cargo when transported by water. 5330-00-373-8372 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-373-8372
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- --
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5330-00-373-8372 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
