5330-00-326-7646
Packing Retainer
5330003267646 003267646 3292101 3292048
An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE. View more Packing Retainer
November 2023
5
Marketplace 5330-00-326-7646
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-326-7646 2+ Documents (More...)
United States (US) 4. 5330-00-326-7646 Marketplace Restrictions Approved Sources Datasheet Management
RETAINER,PACKING 70 EA NS Request Quotation Updated Every Day 5330-00-326-7646 RQST NE Updated Every
www.nsnlookup.com /fsg-60/fsc-6015/it 6015-15-186-3633 Pig-Tail Sc Tight 9 6015151863633151863633 3292101
Fiber Optic Cables from Italy (IT) 6015-15-186-3633 https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-326-7646
Restrictions 5330-00-326-7646
5330-00-326-7646 is a Packing Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5330-00-326-7646
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-326-7646
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- FXKZ
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2009
Approved Sources 5330-00-326-7646
- Part Number
- Manufacturer
- Status
- 3292101
- Manufacturer
- 82106 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- 3292101
- 93835 - Parker-Hannifin Corp (Active)
- Original Design
- Original Design
- 3292048
- 93835 - Parker-Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5330-00-326-7646
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0

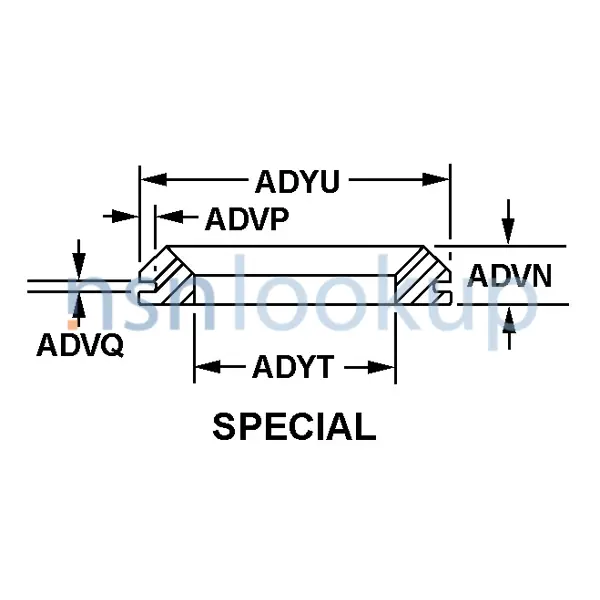

- Center Hole Diameter [ADYT]
- 0.266 Inches Minimum And 0.267 Inches Maximum
- Cross-Sectional Shape Style [AAGR]
- Special
- Cross-Sectional Height [ADVN]
- 0.517 Inches Minimum And 0.527 Inches Maximum
- Material Document And Classification [MDCL]
- Qq-A-225/9 T7351 Fed Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 7075 Overall
- Outer Groove Depth [ADVP]
- 0.110 Inches Minimum And 0.111 Inches Maximum
- Outer Groove Width [ADVQ]
- 0.207 Inches Minimum And 0.217 Inches Maximum
- Peripheral Diameter [ADYU]
- 0.988 Inches Minimum And 0.989 Inches Maximum
- Surface Treatment [SFTT]
- Anodize Overall
Weapon Systems (WSDC) 5330-00-326-7646
DLA Procurement Analysis 5330-00-326-7646
- Last Stock Position:
- 20 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-00-326-7646
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- HS
- AIRCRAFT HYDRAULIC SYSTEMS AND COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5330-00-326-7646
Freight Information 5330-00-326-7646
5330-00-326-7646 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194050. A Sub NMFC of X. It has a NMFC Description of GASKETS/RINGS PLUMBING FIXTURES. 5330-00-326-7646 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 78100 which rates the freight between FCL and LCL. 5330-00-326-7646 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-00-326-7646 is not classified as a special type of cargo when transported by water. 5330-00-326-7646 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-326-7646
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- ASTM-D4727, Fiberboard used as a Stiffener on Both Sides of Item
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5330-00-326-7646 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
