5330-00-302-9704
Packing Retainer
5330003029704 003029704 83362
An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE. View more Packing Retainer
August 2023
21
Marketplace 5330-00-302-9704
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-302-9704 5+ Documents (More...)
RETAINER,PACKING 100 EA NS Request Quotation Updated Every Day 5330-00-302-9704 RQST NE Updated Every
Day 5330-00-302-9704 RQST Updated Every Day 5330-00-302-9704 RQST NE Related Documents 5330-00-302-9704
/000 419/1/83362/000 A grouping of two or more physically connected or related electrical an/or electronic
Packing Retainer 5330003029704 003029704 Every Day 5330-00-302-9704 RQST NE Updated Every https
https//www.nsnlookup.com /fsg-53/fsc-5365/br 5365-19-004-9948 Sleeve Spacer 5365190049948190049948 170-83362
to enable JavaScript in your web browser . 5365-19-004-9948Sleeve Spacer5365190049948 190049948 170-83362
a day Upgrade your Account Upgrade 5360-00-247-4756Extension Helical Spring5360002474756 002474756 83362
- Upgrade for $1 a day Upgrade your Account Upgrade 5815-00-127-1993Bracket5815001271993 001271993 83362
83362 Scouring Powder 7930218844151218844151,AJAX enable JavaScript in your web browser . 7930-21-884
to enable JavaScript in your web browser . 5920-12-369-7917Fuse Assortment5920123697917 123697917 83362
Restrictions 5330-00-302-9704
5330-00-302-9704 is a Packing Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-00-302-9704
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-302-9704
- US Army (A919)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Aug 1996
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5330-00-302-9704
- Part Number
- Manufacturer
- Status
- 83362
- Manufacturer
- 82722 - Westinghouse Air Brake Technologies (Active)
- Primary Buy
- Primary Buy

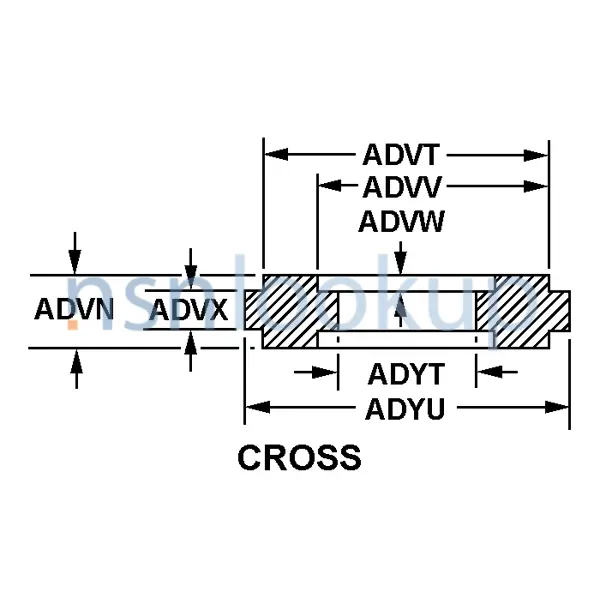

Datasheet 5330-00-302-9704
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Body Recess Depth [ADVW]
- 0.050 Inches Nominal
- Body Recess Diameter [ADVV]
- 0.906 Inches Nominal
- Center Hole Diameter [ADYT]
- 0.375 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Cross
- Cross-Sectional Height [ADVN]
- 0.160 Inches Nominal
- Flanged Body Outside Diameter [ADVT]
- 1.046 Inches Nominal
- Material [MATT]
- Rubber Synthetic Overall
- Rim Surface Width [ADVX]
- 0.094 Inches Nominal
- Peripheral Diameter [ADYU]
- 1.062 Inches Nominal
DLA Procurement Analysis 5330-00-302-9704
Management Data 5330-00-302-9704
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5330-00-302-9704
Freight Information 5330-00-302-9704
5330-00-302-9704 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-00-302-9704 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-00-302-9704 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-00-302-9704 is not classified as a special type of cargo when transported by water. 5330-00-302-9704 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-302-9704
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5330-00-302-9704 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
