5330-00-297-6329

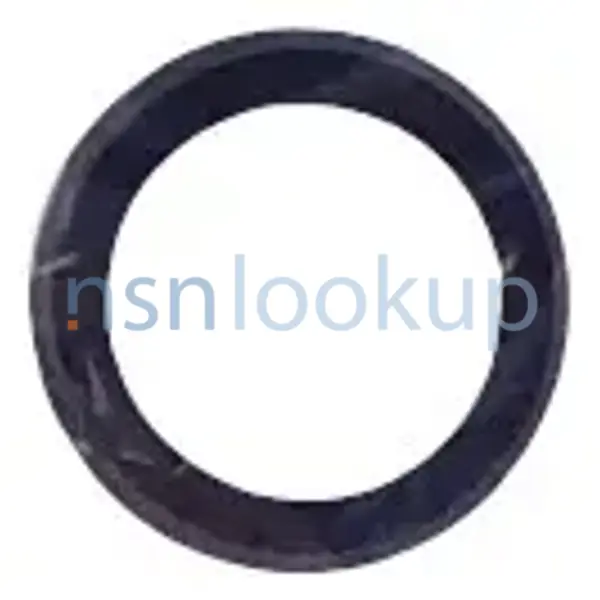

Preformed Packing
5330002976329 002976329 13013845 7358626 C4394 5943681 2301707 5330PL0725100
A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED. View more Preformed Packing
November 2023
46
Marketplace 5330-00-297-6329
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5330-00-297-6329 5+ Documents (More...)
C4394 PACKING,PREFORMED RQST NS Request Quotation 7358626 PACKING,PREFORMED 14 EA NS Request Quotation
2301707 PACKING,PREFORMED RQST NS Request Quotation 5943681 PACKING,PREFORMED RQST NS Request Quotation
www.nsnlookup.com /fsg-49/fsc-4910/tr 4910-27-019-9623 Tire Vulcanizing Mold 4910270199623270199623 5330002976329
www.nsnlookup.com /fsg-49/fsc-4910/tr 4910-27-019-9623 https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-00-297-6329
C4394 SWITCH,PUSH 3 EA NS Request Quotation Subscribe to View Vendor Details... 10236-1 SWITCH,PUSH 3
C4394 MICROCIRCUIT,DIGITAL RQST NS Request Quotation Subscribe to View Vendor Details...
C4394 CONNECTOR ASSEMBLY,ELECTRICAL RQST NS Request Quotation Subscribe to View Vendor Details...
C4394 CONNECTOR ASSEMBLY,ELECTRICAL 3 EA NS Request Quotation FedMall Updated Every 15 Minutes 5935-01
C4394 SWITCH,PUSH RQST NS Request Quotation Subscribe to View Vendor Details...
C4394 SWITCH,PUSH 3 EA NS Request Quotation Subscribe to View Vendor Details... 10236-1 SWITCH,PUSH 3
Restrictions 5330-00-297-6329
5330-00-297-6329 is a Preformed Packing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-00-297-6329
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-297-6329
- US Army (A919)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCLBFBD
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Mar 2001
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Mar 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Feb 2009
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 5330-00-297-6329
- Part Number
- Manufacturer
- Status
- 13013845
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- C4394
- 83058 - Trw Assemblies And Fasteners Group (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5943681
- 73331 - General Motors Corp Fisher Guide Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5330002976329
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- C4394
- 61864 - Trw Assemblies And Fasteners Group (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 2301707
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5943681
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2301707
- 23862 - Military Vehicles Opn General Motors (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7358626
- 19207 - U S Army Tank Automotive Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5330PL0725100
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5330002976329
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 7358626
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 5330-00-297-6329
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Center Hole Diameter [ADYT]
- 0.850 Inches Minimum And 0.865 Inches Maximum
- Color [HUES]
- Black
- Cross-Sectional Thickness [ADVM]
- 0.062 Inches Nominal
- Cross-Sectional Height [ADVN]
- 0.156 Inches Nominal
- End Item Identification [AGAV]
- W/S: Armored Combat Earthmover (M9); Armored Vehicle Launch Bridge (M60a1 & M48a5); Field Artillery Ammunition Support Vehcile (Faagv) (M992); Aircraft, T-39; Truck, Cargo, 5-Ton, 6X6, Xlwb W/E; Crane, Wheel Mtd, 20-Ton W/Blk Tackle; Truck, Cargo, Dropside, 2 1/2-Ton 6X6 W/E; Truck, Ambulance, 2-Litter, Soft Top, 1 1/4 Ton Hmmwv; Truck, Cargo, Dropside, 5-Ton, 6X6 (M813a1, M-923, M-925); Truck, Cargo, Dropside, Xlwb, 5-Ton, 6X6 (M814,M927,M928)
- Hardness Rating [CQFM]
- 45.0 Shore Durometer A Minimum Overall And 55.0 Shore Durometer A Maximum Overall
- Material [MATT]
- Rubber Chloroprene Class Cr Overall
- Material Document And Classification [MDCL]
- Mil-R-15624 Mil Spec Single Material Response Overall
- Peripheral Diameter [ADYU]
- 1.156 Inches Nominal
Weapon Systems (WSDC) 5330-00-297-6329
DLA Procurement Analysis 5330-00-297-6329
- Last Stock Position:
- 1852 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5330-00-297-6329
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Jun 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Jan 2021
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- K
- Reserved
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5330-00-297-6329
Freight Information 5330-00-297-6329
5330-00-297-6329 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-00-297-6329 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-00-297-6329 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-00-297-6329 is not classified as a special type of cargo when transported by water. 5330-00-297-6329 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-297-6329
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5330-00-297-6329 3 Records
Contracting Technical Data File (CTDF) 5330-00-297-6329 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
