5330-00-092-6888
Wiper Ring
5330000926888 000926888 7580-11260 Y12294 0926888
A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL. View more Wiper Ring
June 2023
23
Marketplace 5330-00-092-6888
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-092-6888 1+ Documents (More...)
(Identification) 1/2 NSN 5330-00-092-6888 (Identification) 2/2 - - 1.
Day 5330-00-092-6888 RQST Updated Every Day 5330-00-092-6888 RQST NE Related Documents 5330-00-092-6888
Restrictions 5330-00-092-6888
5330-00-092-6888 is a Wiper Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-00-092-6888
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-092-6888
- US Army (A920)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- AZ
- US Air Force (FGGI)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FGKZ
- US Navy (N9BZ)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5330-00-092-6888
- Part Number
- Manufacturer
- Status
- 7580-11260
- Manufacturer
- 81168 - Strohmeyer, Julie A. (Active)
- Original Design
- Original Design
- Y12294
- 556A6 - Linde Material Handling North (Active)
- Secondary Buy
- Secondary Buy
- Y12294
- 05415 - Linde Lift Truck Corp. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 0926888
- 20149 - Intrupa Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5330-00-092-6888
- Characteristic
- Specifications
- FIIG
- Specifications
- A08400
- Material [MATT]
- Rubber Synthetic Overall

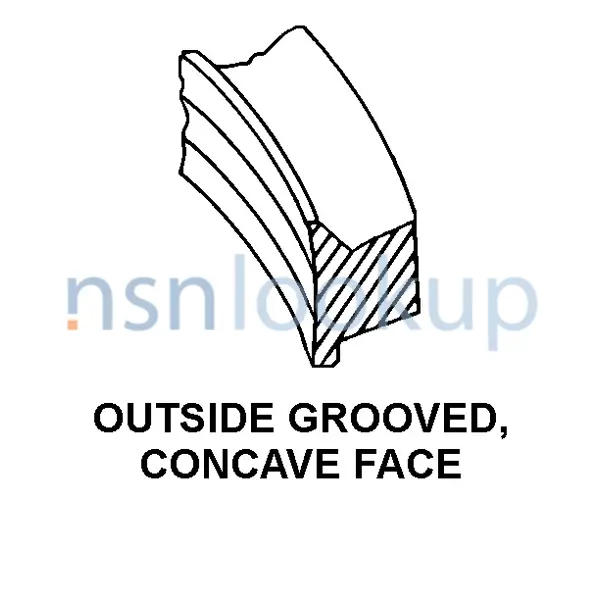

- Cross-Sectional Shape Style [AAGR]
- Outside Grooved, Concave Face
- Ring Style [ACXD]
- Concentric
- Inside Diameter [AARX]
- 1.750 Inches Nominal
- Outside Diameter [ABKV]
- 2.125 Inches Nominal
- Material Thickness [ABPX]
- 0.352 Inches Nominal
- Outer Edge Thickness [ACXK]
- 0.188 Inches Nominal
- Fsc Application Data [ZZZV]
- Truck,Fork Lift
Weapon Systems (WSDC) 5330-00-092-6888
DLA Procurement Analysis 5330-00-092-6888
Management Data 5330-00-092-6888
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5330-00-092-6888
Freight Information 5330-00-092-6888
5330-00-092-6888 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 5330-00-092-6888 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 5330-00-092-6888 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 885 for ocean manifesting and military sealift. 5330-00-092-6888 is not classified as a special type of cargo when transported by water. 5330-00-092-6888 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5330-00-092-6888 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
