5330-00-079-0954
Preformed Packing
5330000790954 000790954 SAE-AS28772 MS28772-338
A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED. View more Preformed Packing
November 2023
18
Marketplace 5330-00-079-0954
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-079-0954 5+ Documents (More...)
Photo 1/2 NSN 5330-00-079-0954 (Identification) 2/2 - - 1.
MS28772-338 PACKING,PREFORMED 10 EA NS Request Quotation Subscribe to View Vendor Details...
Preformed Packing 5330000790954 000790954 $1 a day Upgrade your Account Upgrade 5330-00-079-0954Preformed
Packing5330000790954 000790954 SAE-AS28772 Request Quotation Subscribe to View Vendor Details... https
Preformed Packing 5330000790954 000790954 $1 a day Upgrade your Account Upgrade 5330-00-079-0954Preformed
Packing5330000790954 000790954 SAE-AS28772 0954Preformed Packing5330000790954 000790954SAE-AS28772 https
Preformed Packing 5330000790954 000790954 $1 a day Upgrade your Account Upgrade 5330-00-079-0954Preformed
Packing5330000790954 000790954 SAE-AS28772 079-0954 Preformed Packing 5330000790954000790954 https//
Restrictions 5330-00-079-0954
5330-00-079-0954 is a Preformed Packing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-00-079-0954
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-079-0954
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- FXKZ
- Supplementary Collaborators:
- SU
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Mar 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5330-00-079-0954
- Part Number
- Manufacturer
- Status
- SAE-AS28772
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- MS28772-338
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- MS28772-338
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Original Design
- Original Design
- MS28772-338
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5330-00-079-0954
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0

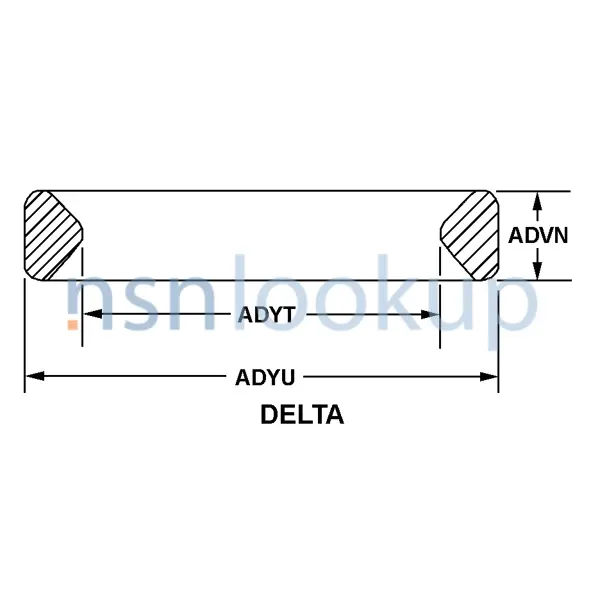

- Center Hole Diameter [ADYT]
- 3.085 Inches Minimum And 3.115 Inches Maximum
- Cross-Sectional Shape Style [AAGR]
- Delta
- Cross-Sectional Height [ADVN]
- 0.370 Inches Minimum And 0.380 Inches Maximum
- Hardness Rating [CQFM]
- 68.0 Shore Durometer A Nominal Overall
- Material [MATT]
- Rubber Butadiene-Acrylonitrile Class Nbr Overall
- Material Document And Classification [MDCL]
- Mil-P-5516,Cl B Mil Spec Single Material Response Overall
- Peripheral Diameter [ADYU]
- 3.495 Inches Minimum And 3.545 Inches Maximum
- Temp Rating [ABJH]
- -65.0 Deg Fahrenheit And 160.0 Deg Fahrenheit
Weapon Systems (WSDC) 5330-00-079-0954
DLA Procurement Analysis 5330-00-079-0954
Management Data 5330-00-079-0954
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5330-00-079-0954
Freight Information 5330-00-079-0954
5330-00-079-0954 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-00-079-0954 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-00-079-0954 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-00-079-0954 is not classified as a special type of cargo when transported by water. 5330-00-079-0954 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-079-0954
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- Type I, shelf life
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5330-00-079-0954 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
