5330-00-073-0722
Nonmetallic Strip Seal
5330000730722 000730722 1011937 2006584
An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED. View more Nonmetallic Strip Seal
August 2023
6
Marketplace 5330-00-073-0722
Request a Quotation from participating marketplace vendors
Related Documents 5330-00-073-0722 1+ Documents (More...)
(Identification) 1/2 NSN 5330-00-073-0722 (Identification) 2/2 - - 1.
United States (US) 4. 5330-00-073-0722 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 5330-00-073-0722
5330-00-073-0722 is a Nonmetallic Strip Seal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5330-00-073-0722
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5330-00-073-0722
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5330-00-073-0722
- Part Number
- Manufacturer
- Status
- 2006584
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Original Design
- Original Design
- 1011937
- 56232 - Lockheed Martin Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5330-00-073-0722
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- End Cut Depth [ADUL]
- 0.500 Inches Nominal
- End Cut Length [ADUK]
- 0.437 Inches Nominal
- Attachment Feature Quantity [ADTL]
- 9
- Attachment Hole Diameter [ADTM]
- 0.338 Inches Minimum And 0.358 Inches Maximum
- Attachment Method [ABSX]
- Round Hole
- Construction [CQCF]
- Solid
- Cross-Sectional Shape Style [AAGR]
- Rectangular
- Cross-Sectional Height [ADVN]
- 0.109 Inches Minimum And 0.141 Inches Maximum
- Cross-Sectional Width [ADWH]
- 0.875 Inches Nominal
- Fabrication Method [AARN]
- Solid
- Material [MATT]
- Rubber Butadiene-Acrylonitrile Class Nbr Overall Or Rubber Polyester Urethane Class Au Overall Or Rubber Polyether Urethane Class Eu Overall
- Material Document And Classification [MDCL]
- Astm D2000 5Bg61sa1b1f2 Assn Std All Material Responses Overall
- Overall Length [ABHP]
- 35.250 Inches Nominal

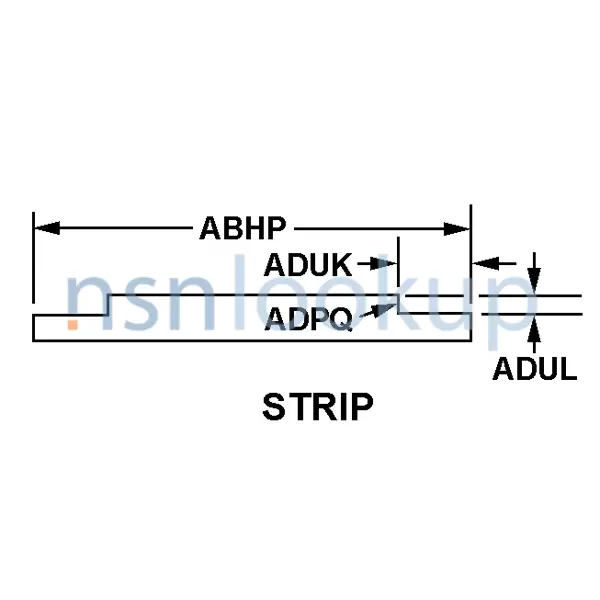

- Style Designator [STYL]
- Strip
Weapon Systems (WSDC) 5330-00-073-0722
DLA Procurement Analysis 5330-00-073-0722
Management Data 5330-00-073-0722
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5330-00-073-0722
Freight Information 5330-00-073-0722
5330-00-073-0722 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194120. A Sub NMFC of Z. It has a NMFC Description of WASHERS/GASKETS/PCKG DVCS NOI. 5330-00-073-0722 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5330-00-073-0722 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 596 for ocean manifesting and military sealift. 5330-00-073-0722 is not classified as a special type of cargo when transported by water. 5330-00-073-0722 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5330-00-073-0722
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5330-00-073-0722 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
