5325-01-641-1812
Positive Lock Stud
5325016411812 016411812 167-8278267 ITEM 12 167-8278268 ITEM 28 167-8278275 ITEM 26 167-8278267 167-8278275
A quick disconnecting item with a circumferential groove at one end that is inserted into a RECEPTACLE, POSITIVE LOCK for positive fastening. View more Positive Lock Stud
November 2023
1
Marketplace 5325-01-641-1812
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-641-1812 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5325-01-641-1812 RQST NE Updated Every Day 5325-01-641-1812 RQST
ITEM 34 167-8278267167-8278275 A tubular shaped unthreaded 167-8278275 ITEM 26 167-8278267167-8278275
ITEM NO. 20 167-8278270 ITEM NO. 36 167-8278275 ITEM 34 167-8278267 167-8278275 A tubular shaped unthreaded
Positive Lock Stud 5325016411812 016411812 $1 a day Upgrade your Account Upgrade 5325-01-641-1812Positive
ITEM NO. 20 167-8278270 ITEM NO. 36 167-8278275 ITEM 34 167-8278267 167-8278275 A tubular shaped unthreaded
Positive Lock Stud 5325016411812 016411812 $1 a day Upgrade your Account Upgrade 5325-01-641-1812Positive
/fsg-31/fsc-3120/us
ITEM NO. 20 167-8278270 ITEM NO. 36 167-8278275 ITEM 34 167-8278267 167-8278275 A tubular shaped unthreaded
Positive Lock Stud 5325016411812 016411812 $1 a day Upgrade your Account Upgrade 5325-01-641-1812Positive
ITEM NO. 13 167-8278270 ITEM NO. 72 167-8278275 ITEM 9 An open coiled spring, wound in various forms
www.nsnlookup.com /fsg-53/fsc-5360/us 5360-01-640-8515 Compression Helical Spring 5360016408515 167-8278267
Restrictions 5325-01-641-1812
5325-01-641-1812 is a Positive Lock Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-641-1812
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-641-1812
- US Navy (N9BZ)
- Effective Date:
- 1 Jan 2015
- Supplementary Collaborators:
- HDJB
Approved Sources 5325-01-641-1812
- Part Number
- Manufacturer
- Status
- 167-8278267 ITEM 12
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 167-8278268 ITEM 28
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 167-8278275 ITEM 26
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 167-8278267
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
- 167-8278275
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5325-01-641-1812
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- End Overall Length [AGQM]
- 0.420 Inches Nominal
- Head Diameter [AASL]
- 0.625 Inches Nominal
- End Item Identification [AGAV]
- Door, Frag, 54X
- Material Document And Classification [MDCL]
- Astm A276, Cl-316L Assn Std Single Material Response Overall
- Material [MATT]
- Steel Comp 316 Overall
- Part Name Assigned By Controlling Agency [CXCY]
- Stud, Link
- Major Diameter Length [AGQK]
- 0.280 Inches Minimum And 0.310 Inches Maximum

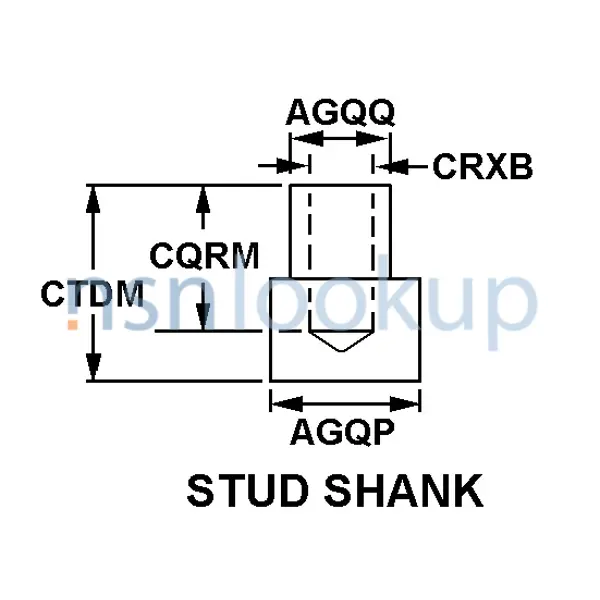

- Positive Lock Stud Head Style [AGQJ]
- Stud Head
- Positive Lock Stud Shank Style [AGQN]
- Stud Shank
- Shank Major Diameter [AGQP]
- 0.732 Inches Minimum And 0.734 Inches Maximum
- Shank Minor Diameter [AGQQ]
- 0.501 Inches Minimum And 0.502 Inches Maximum
- Thread Size And Series/Type Designator [THDS]
- 0.625-18Unf-2A Unf
- Undercut Length [AGQL]
- 0.110 Inches Minimum And 0.140 Inches Maximum
- Stud Shank Overall Height [CTDM]
- 1.080 Inches Nominal
Weapon Systems (WSDC) 5325-01-641-1812
DLA Procurement Analysis 5325-01-641-1812
- Last Stock Position:
- 40 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-01-641-1812
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Dec 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Dec 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-01-641-1812
Freight Information 5325-01-641-1812
5325-01-641-1812 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5325-01-641-1812 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5325-01-641-1812 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-641-1812 is not classified as a special type of cargo when transported by water. 5325-01-641-1812 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
