5325-01-620-1860
Nonmetallic Grommet
5325016201860 016201860 12341207-1
An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING. View more Nonmetallic Grommet
May 2023
1
Marketplace 5325-01-620-1860
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-620-1860 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5325-01-620-1860 RQST NE Updated Every Day 5325-01-620-1860 RQST
Updated Every Day 5325-01-620-1860 RQST NE Related Documents 5325-01-620-1860 3+ Documents ( More...
/fsg-61/fsc-6150/us
Nonmetallic Grommet 5325016201860 016201860 $1 a day Upgrade your Account Upgrade 5325-01-620-1860Nonmetallic
Grommet5325016201860 016201860 12341207 01-620-1860 DEMIL: A | DEMILI : 1 | CRITICALITY https//www.nsnlookup.com
Restrictions 5325-01-620-1860
5325-01-620-1860 is a Nonmetallic Grommet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-620-1860
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-620-1860
- US Army (A919)
- Effective Date:
- 1 Jul 2013
- Supplementary Receivers:
- AZ
Approved Sources 5325-01-620-1860
- Part Number
- Manufacturer
- Status
- 12341207-1
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-01-620-1860
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Rubber Synthetic Overall
- Color [HUES]
- Black Overall

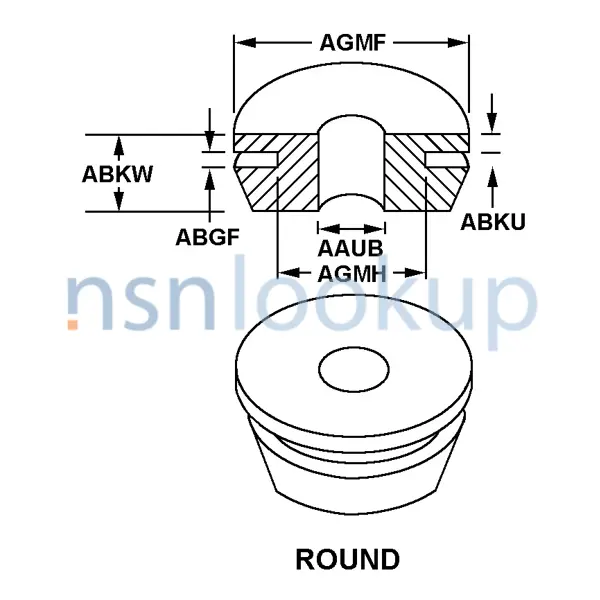

- Grommet Style [AGME]
- Round
- Hole Diameter [AAUB]
- 0.750 Inches Nominal
- Groove Width [ABGF]
- 0.060 Inches Nominal
- Flange Thickness [ABKU]
- 0.200 Inches Nominal
- Overall Height [ABKW]
- 1.220 Inches Nominal
- Large Flange Outside Diameter [AGMF]
- 1.131 Inches Nominal
- Groove Outside Diameter [AGMH]
- 1.100 Inches Nominal
- Grommet Construction Type [AGMU]
- Solid
- Specification/Standard Data [ZZZK]
- 81346-Astm D 2000-99 Professional/Industrial Association Standard
- End Item Identification [AGAV]
- 2310-01-595-3986
- Part Name Assigned By Controlling Agency [CXCY]
- Grommet
DLA Procurement Analysis 5325-01-620-1860
Management Data 5325-01-620-1860
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5325-01-620-1860
Freight Information 5325-01-620-1860
5325-01-620-1860 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-01-620-1860 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-620-1860 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 5325-01-620-1860 is not classified as a special type of cargo when transported by water. 5325-01-620-1860 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5325-01-620-1860 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
