5325-01-615-4667
Turnlock Fastener Receptacle
5325016154667 016154667 D1-004-001-QX 93442A212
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
November 2023
1
Marketplace 5325-01-615-4667
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-615-4667 1+ Documents (More...)
(Identification) 1/2 NSN 5325-01-615-4667 (Identification) 2/2 - - 1.
United States (US) 4. 5325-01-615-4667 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 5325-01-615-4667
5325-01-615-4667 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-01-615-4667
- US Navy (N9BZ)
- Effective Date:
- 1 Jan 2013
- Supplementary Collaborators:
- KE
Approved Sources 5325-01-615-4667
- Part Number
- Manufacturer
- Status
- D1-004-001-QX
- Manufacturer
- 72794 - Southco Inc (Active)
- Primary Buy
- Primary Buy
- 93442A212
- 39428 - Mcmaster-Carr Supply Co (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5325-01-615-4667
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Plastic Overall

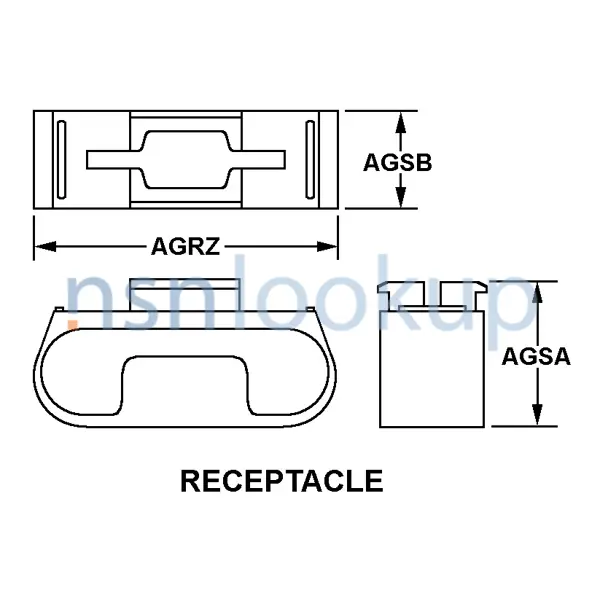

- Turnlock Receptacle Style [AGRY]
- Receptacle
- Receptacle Overall Length [AGRZ]
- 1.54 Inches Nominal
- Receptacle Height [AGSA]
- 0.59 Inches Nominal
- Receptacle Width [AGSB]
- 0.50 Inches Nominal
- Mounting Style [ADER]
- Raised Boss W/Mounting Hole
- Turnlock Mounting Hole Diameter [CSYB]
- 0.438 Inches Nominal
- Special Features [FEAT]
- Black; Temperature Range -40F To +194F
- End Item Identification [AGAV]
- Cab Equipment
- Part Name Assigned By Controlling Agency [CXCY]
- Quarter Turn,Nut
Weapon Systems (WSDC) 5325-01-615-4667
DLA Procurement Analysis 5325-01-615-4667
- Last Stock Position:
- 43 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-01-615-4667
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-01-615-4667
Freight Information 5325-01-615-4667
5325-01-615-4667 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 094560. A Sub NMFC of X. It has a NMFC Description of FASTENERS BOX/PAIL/TUB NOI STEEL. 5325-01-615-4667 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49410 which rates the freight between FCL and LCL. 5325-01-615-4667 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5325-01-615-4667 is not classified as a special type of cargo when transported by water. 5325-01-615-4667 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5325-01-615-4667 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
