5325-01-611-9393
Turnlock Fastener Receptacle
5325016119393 016119393 3595-H39 3D0112-39
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
November 2023
1
Marketplace 5325-01-611-9393
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-611-9393 1+ Documents (More...)
(Identification) 1/2 NSN 5325-01-611-9393 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5325-01-611-9393 RQST NE Updated Every Day 5325-01-611-9393 RQST
Restrictions 5325-01-611-9393
5325-01-611-9393 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-01-611-9393
- US Air Force (FGGI)
- Effective Date:
- 1 Sep 2012
Approved Sources 5325-01-611-9393
- Part Number
- Manufacturer
- Status
- 3595-H39
- Manufacturer
- 72794 - Southco Inc (Active)
- Primary Buy
- Primary Buy
- 3D0112-39
- 88277 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5325-01-611-9393
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Aluminum Alloy 6061 Overall

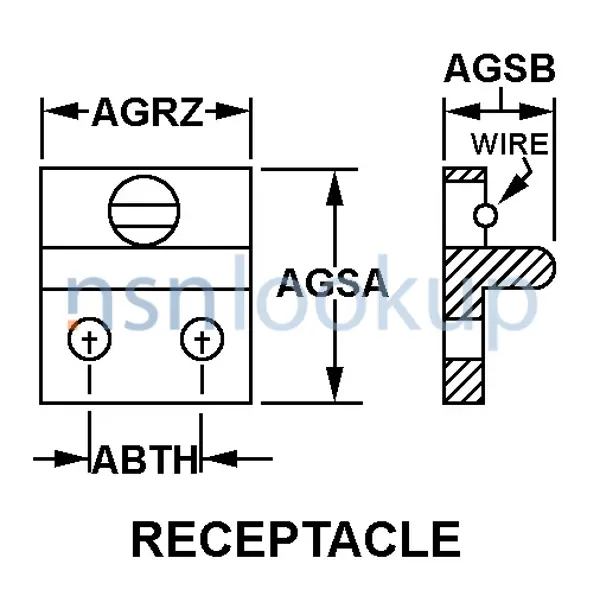

- Turnlock Receptacle Style [AGRY]
- Receptacle
- Center To Center Distance Between Mounting Holes [ABTH]
- 0.375 Inches Nominal
- Receptacle Overall Length [AGRZ]
- 14.937 Inches Nominal
- Receptacle Height [AGSA]
- 0.780 Inches Nominal
- Receptacle Width [AGSB]
- 0.375 Inches Nominal
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Turnlock Mounting Hole Diameter [CSYB]
- 0.242 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Receptacle,Turnlock Fastener,Quarter Turn,Flat Mtg Strip
Weapon Systems (WSDC) 5325-01-611-9393
DLA Procurement Analysis 5325-01-611-9393
- Last Stock Position:
- 17 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-01-611-9393
Similar Supply Items to 5325-01-611-9393
Freight Information 5325-01-611-9393
5325-01-611-9393 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 094560. A Sub NMFC of X. It has a NMFC Description of FASTENERS BOX/PAIL/TUB NOI STEEL. 5325-01-611-9393 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49410 which rates the freight between FCL and LCL. 5325-01-611-9393 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5325-01-611-9393 is not classified as a special type of cargo when transported by water. 5325-01-611-9393 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
