5325-01-610-3526
Positive Lock Fastener
5325016103526 016103526 354-190001-01
An item consisting of a STUD, POSITIVE LOCK and a RECEPTACLE, POSITIVE LOCK and may include a washer. It is designed to provide a means for securely locking two items together and allow for quick disconnecting. View more Positive Lock Fastener
May 2023
1
Marketplace 5325-01-610-3526
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-610-3526 1+ Documents (More...)
Updated Every Day 5325-01-610-3526 RQST NE Related Documents 5325-01-610-3526 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-610-3526 Positive Lock Fastener 5325016103526
Restrictions 5325-01-610-3526
5325-01-610-3526 is a Positive Lock Fastener that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-01-610-3526
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2012
- Supplementary Collaborators:
- KE
Approved Sources 5325-01-610-3526
- Part Number
- Manufacturer
- Status
- 354-190001-01
- Manufacturer
- 09772 - West Coast Lockwasher Co., Inc. (Active)
- Primary Buy
- Primary Buy
- 354-190001-01
- 3XST1 - West Coast Lockwasher Co Dba W C L (Replaced)
- Original Design
- Original Design
Datasheet 5325-01-610-3526
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- End Overall Length [AGQM]
- 0.600 Inches Minimum And 0.620 Inches Maximum
- Head Diameter [AASL]
- 0.327 Inches Minimum And 0.347 Inches Maximum

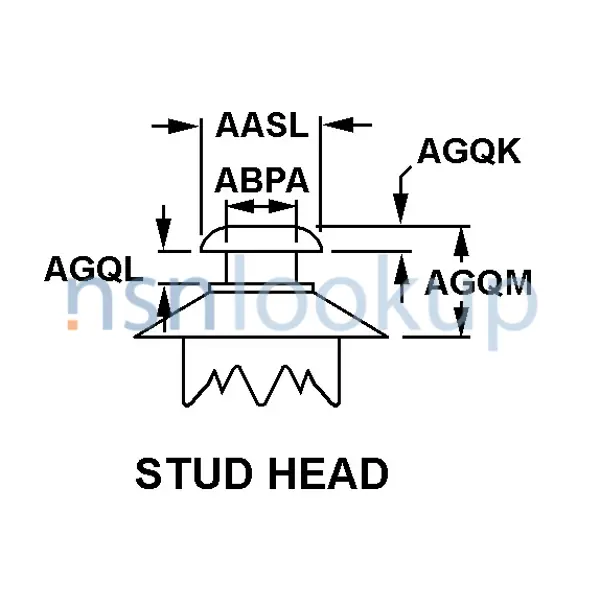

- Positive Lock Stud Head Style [AGQJ]
- Stud Head
- Shoulder Height [ABMG]
- 0.040 Inches Minimum And 0.060 Inches Maximum
- Part Name Assigned By Controlling Agency [CXCY]
- Iuid Mil Case Rivet
- Stud Shank Hole Diameter [CRXB]
- 0.180 Inches Minimum And 0.182 Inches Maximum
- Stud Shank Overall Height [CTDM]
- 0.560 Inches Nominal
DLA Procurement Analysis 5325-01-610-3526
Management Data 5325-01-610-3526
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-01-610-3526
Freight Information 5325-01-610-3526
5325-01-610-3526 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-01-610-3526 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-610-3526 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5325-01-610-3526 is not classified as a special type of cargo when transported by water. 5325-01-610-3526 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
