5325-01-493-7008
Snap Fastener Stud
5325014937008 014937008 MS27977-13N
A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER. View more Snap Fastener Stud
January 2023
1
Marketplace 5325-01-493-7008
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-493-7008 1+ Documents (More...)
5325-01-493-7008 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-493-7008
RQST NE Updated Every Day 5325-01-493-7008 RQST Updated Every Day 5325-01-493-7008 RQST NE Restrictions
Restrictions 5325-01-493-7008
5325-01-493-7008 is a Snap Fastener Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-01-493-7008
- Italy (ZR01)
- Effective Date:
- 1 Jan 2002
Approved Sources 5325-01-493-7008
- Part Number
- Manufacturer
- Status
- MS27977-13N
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard

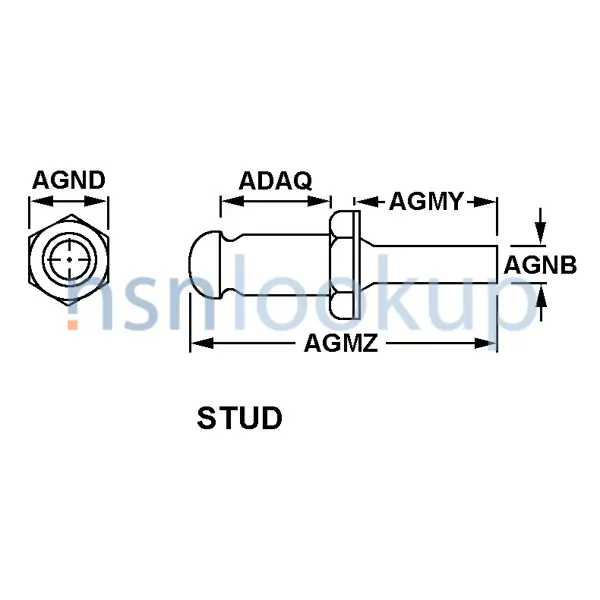

Datasheet 5325-01-493-7008
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Body Length [ADAQ]
- 0.188 Inches Nominal
- Material [MATT]
- Copper Alloy Overall
- Snap Fastener Stud Style [AGMX]
- Stud
- Thread Size And Series/Type Designator [THDS]
- 0.164-32 Unc
- Stud Overall Length [AGMZ]
- 0.766 Inches Nominal
- Stud Retention Method [AGPC]
- Screw
- Stud Shank Diameter [AGNB]
- 0.164 Inches Nominal
- Stud Shank Length [AGMY]
- 0.375 Inches Nominal
- Stud Base Width Across Flats [AGND]
- 0.250 Inches Nominal
- Surface Treatment [SFTT]
- Nickel Overall
Similar Supply Items to 5325-01-493-7008
Freight Information 5325-01-493-7008
5325-01-493-7008 has freight characteristics.. 5325-01-493-7008 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
