5325-01-485-5794

Turnlock Fastener Stud Assembly

5325014855794 014855794 3M1250AC6-8 CA17202-8TXR 3M1250AC6-8A MT161AC6-8

A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER. View more Turnlock Fastener Stud Assembly

Managed by United States

NSN Created on 31 May 2001

Data Last Changed
November 2023

NATO Update Count
10

NATO Data Quality

5325-01-485-5794 STUD ASSEMBLY,TURNLOCK FASTENER 5325014855794 014855794 1/3 — 5325-01-485-5794 Photo 1/3

AGRD Style 1 for 5325-01-485-5794 2/3 — NSN 5325-01-485-5794 (Identification) 2/3

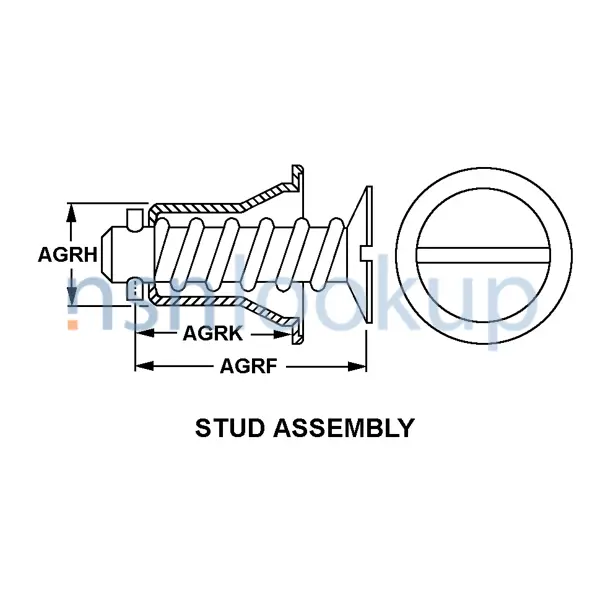

AGRE Style 10 for 5325-01-485-5794 3/3 — NSN 5325-01-485-5794 (Identification) 3/3

Marketplace 5325-01-485-5794

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

5325-01-485-5794 RQST NE

Updated Every Day

5325-01-485-5794 RQST

Updated Every Day

5325-01-485-5794 RQST NE

Restrictions 5325-01-485-5794

5325-01-485-5794 is a Turnlock Fastener Stud Assembly that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5325-01-485-5794

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5325-01-485-5794

US Air Force (FGGI)
Effective Date:: 1 Nov 2013
Former MOE Rule:: FGKE; AMC 3 AMSC D IMC Z IMCACTY TG

US Navy (N9BZ)
Effective Date:: 1 Nov 2013
Former MOE Rule:: N1R5
Supplementary Collaborators:: GGKE; AMC 3 AMSC D IMC Z IMCACTY GH

Australia (ZA01)
Effective Date:: 1 Aug 2006

Canada (ZC01)
Effective Date:: 1 Apr 2008

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Jan 2014

Approved Sources 5325-01-485-5794

Part Number
Manufacturer
Status
3M1250AC6-8: 76301 - The Boeing Company (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
CA17202-8TXR: 29372 - Howmet Global Fastening Systems Inc. (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
3M1250AC6-8A: 76301 - The Boeing Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
MT161AC6-8: 84256 - Avibank Mfg., Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
CA17202-8TXR: 5M902 - Howmet Global Fastening Systems Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5

Datasheet 5325-01-485-5794

Characteristic
Specifications
FIIG: A05400
Distance From Engaging Member To Largest Bearing Surface Of Head [AGRF]: 0.960 Inches Nominal
Criticality Code Justification [CRTL]: Agav
Diameter [ABMZ]: 0.490 Inches Minimum
End Item Identification [AGAV]: Pylon,Aircraft,Suu-80A/A Pylon, 74A730471-1001
Eyelet Outside Diameter [AGRH]: 0.334 Inches Nominal
Material [MATT]: Steel Corrosion Resisting Overall
Special Features [FEAT]: (Inavy) Stud,Turnlock Fastener
Part Name Assigned By Controlling Agency [CXCY]: Stud,Turnlock Fastener
Turnlock Stud Head Style [AGRD]: Flat Countersunk
Stud Assembly Style [AGRE]: Stud Assembly

Weapon Systems (WSDC) 5325-01-485-5794

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5325-01-485-5794

Last Stock Position:: 363 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5325-01-485-5794

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Jan 2023: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

NV: JOINT VERTICAL LIFT AIRCRAFT CV-22 (OSPREY)

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material ID:

QE: Fighter Aircraft - First (F18 E/F)

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

NATO Stock Numbers Related to 5325-01-485-5794

5325-14-240-6820 5325-14-288-9563 5325-12-380-5326 5325-14-348-0725 5325-27-003-9131 5325-21-868-9765 5325-14-410-3630 5325-14-358-6385 5325-14-415-8637 5325-15-194-4163 5325-99-148-4320 5325-21-813-9279 5325-14-417-4351 5325-99-612-4769 5325-12-303-2493 5325-14-349-1399 5325-99-252-7573 5325-14-443-1993

Freight Information 5325-01-485-5794

5325-01-485-5794 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5325-01-485-5794 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5325-01-485-5794 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-485-5794 is not classified as a special type of cargo when transported by water. 5325-01-485-5794 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5325-01-485-5794

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); Validated Correction

Storage Environment: Heated General Purpose – Heated 40 F and above

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; MIL-DTL-17667, Neutral Wrapping Paper; A-A-1898, Grade II, Water Resistant Cellulosic Cushioning; --; ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --; No Requirement

Procurement History 5325-01-485-5794 25 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A622F214W: 22 Jun 2022; Subscribe; 134; Subscribe; Subscribe
SPE4A622F214W: 22 Jun 2022; Subscribe; 134; Subscribe; Subscribe
SPE4A621F514N: 24 Sep 2021; Subscribe; 676; Subscribe; Subscribe
SPE4A621F514N: 24 Sep 2021; Subscribe; 676; Subscribe; Subscribe
SPE4A621F494Q: 22 Sep 2021; Subscribe; 676; Subscribe; Subscribe
SPE4A621F494Q: 22 Sep 2021; Subscribe; 676; Subscribe; Subscribe
SPE4A621F399S: 13 Aug 2021; Subscribe; 130; Subscribe; Subscribe
SPE4A621F399S: 13 Aug 2021; Subscribe; 130; Subscribe; Subscribe
SPE4A621F333V: 15 Jul 2021; Subscribe; 287; Subscribe; Subscribe
SPE4A621F333V: 15 Jul 2021; Subscribe; 287; Subscribe; Subscribe
SPE4A621F141U: 14 May 2021; Subscribe; 984; Subscribe; Subscribe
SPE4A621F141U: 14 May 2021; Subscribe; 984; Subscribe; Subscribe
SPE4A621V088G: 26 Feb 2021; Subscribe; 455; Subscribe; Subscribe
SPE5EY19F2225P00001: 07 Nov 2018; Subscribe; 68; Subscribe; Subscribe
SPE5EY18F300G: 06 Aug 2018; Subscribe; 361; Subscribe; Subscribe
SPE5EY15D05160008: 06 Jun 2017; Subscribe; 748; Subscribe; Subscribe
SPE5EY15D05160007: 26 Apr 2017; Subscribe; 336; Subscribe; Subscribe
SPE5EY15D05160006: 14 Feb 2017; Subscribe; 354; Subscribe; Subscribe
SPE5EY15D05160005: 23 Nov 2016; Subscribe; 309; Subscribe; Subscribe
SPE5EY15D05160004: 14 Sep 2016; Subscribe; 290; Subscribe; Subscribe
SPE5EY15D05160003: 20 Apr 2016; Subscribe; 514; Subscribe; Subscribe
SPE5EY15D05160001: 04 Nov 2015; Subscribe; 307; Subscribe; Subscribe
SPE5E415M0799: 22 Dec 2014; Subscribe; 1505; Subscribe; Subscribe
SPE5E415V1330: 20 Nov 2014; Subscribe; 230; Subscribe; Subscribe
SPE5E414VA254: 14 Jul 2014; Subscribe; 349; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5325-01-485-5794 April 2020

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:: N
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
