5325-01-478-9572
Snapslide Fastener Stud
5325014789572 014789572 124-4322615 PC 7
An item which is used in conjunction with FASTENER, SNAPSLIDE. It secures the latch when mated with the notched rest of the latch. View more Snapslide Fastener Stud
May 2023
1
Marketplace 5325-01-478-9572
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-478-9572 5+ Documents (More...)
Updated Every Day 5325-01-478-9572 RQST NE Related Documents 5325-01-478-9572 5+ Documents ( More...
) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-478-9572 Snapslide Fastener Stud 5325014789572
Snapslide Fastener Stud 5325014789572 www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-211-9131 Snapslide
5325-14-366-0488 14-291-4167 Snapslide Fastener Stud 5325012119131 9572 Snapslide Fastener Stud 5325014789572
Snapslide Fastener Stud 5325014789572 5325-14-291-4167 5325-00-231-9448 5325-01-478-9572 https/
/fsg-53/fsc-5325/us 5325-01-464-4089 Snapslide Fastener Stud 5325014644089 5325-00-231-9448 5325-01-478-9572
Snapslide Fastener Stud 5325014789572 5325-14-291-4167 5325-00-231-9448 5325-01-478-9572 https/
/fsg-53/fsc-5325/us 5325-01-464-4089 Snapslide Fastener Stud 5325014644089 5325-00-231-9448 5325-01-478-9572
4167 Snapslide Fastener Stud 5325142914167 5325-14-366-0488 5325-14-291-4167 5325-00-231-9448 5325-01 -478-9572
//www.nsnlookup.com /fsg-53/fsc-5325/fr 5325-14-291-4167 Snapslide Fastener Stud 5325142914167 5325014789572
Restrictions 5325-01-478-9572
5325-01-478-9572 is a Snapslide Fastener Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-01-478-9572
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
Approved Sources 5325-01-478-9572
- Part Number
- Manufacturer
- Status
- 124-4322615 PC 7
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy

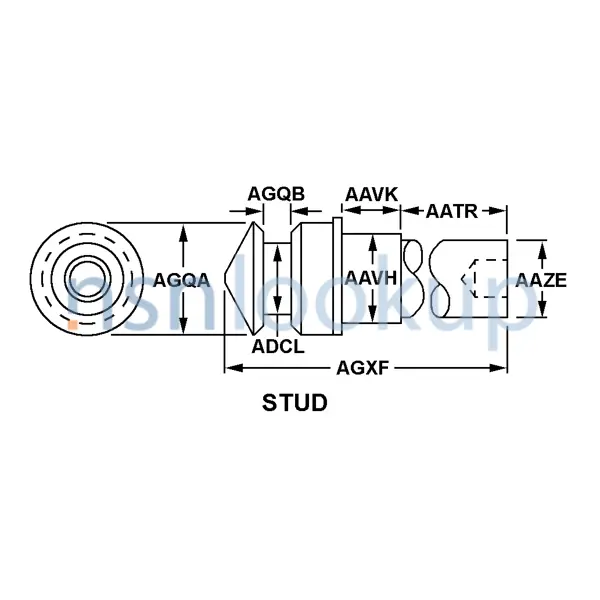

Datasheet 5325-01-478-9572
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material Document And Classification [MDCL]
- Qq-S-763 Fed Spec Single Material Response Overall
- Material [MATT]
- Steel Comp 304 Overall
- Shank Diameter [AAZE]
- 0.502 Inches Nominal
- Shoulder Diameter [AAVH]
- 0.629 Inches Minimum And 0.734 Inches Maximum
- Shoulder Length [AAVK]
- 0.688 Inches Nominal
- Snapslide Stud Style [AGPZ]
- Stud
- Part Name Assigned By Controlling Agency [CXCY]
- Toggle Link And Hand Lever Stud
- Special Features [FEAT]
- Item Has Rounded Threaded End That Is Slotted;Rounded Threaded End Has Cotter Pin Hole;Shouldered End Has A Drilled Hole 5/16 Diameter;Undercut Prior To Threaded End
- Thread Size And Series/Type Designator [THDS]
- 0.625-18 Unf
- Stud Length [AGXF]
- 1.562 Inches Nominal
DLA Procurement Analysis 5325-01-478-9572
Management Data 5325-01-478-9572
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5325-01-478-9572
Freight Information 5325-01-478-9572
5325-01-478-9572 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-01-478-9572 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-01-478-9572 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-478-9572 is not classified as a special type of cargo when transported by water. 5325-01-478-9572 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-01-478-9572
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5325-01-478-9572 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
