5325-01-475-4265
Turnlock Fastener Stud Assembly
5325014754265 014754265 1126015-9
A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER. View more Turnlock Fastener Stud Assembly
January 2023
1
Marketplace 5325-01-475-4265
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-475-4265 3+ Documents (More...)
RQST NE Updated Every Day 5325-01-475-4265 RQST Updated Every Day 5325-01-475-4265 RQST NE Related Documents
5325-01-475-4265 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-475-4265
Turnlock Fastener Stud Assembly 014754265 Upgrade your Account Upgrade 5325-01-475-4265Turnlock
Fastener Stud Assembly5325014754265 014754265 1126015 /www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01
Restrictions 5325-01-475-4265
5325-01-475-4265 is a Turnlock Fastener Stud Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-475-4265
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-475-4265
- United Kingdom (ZK01)
- Effective Date:
- 1 Jun 2000
Approved Sources 5325-01-475-4265
- Part Number
- Manufacturer
- Status
- 1126015-9
- Manufacturer
- 60119 - Monadnock Company, The (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-01-475-4265
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400

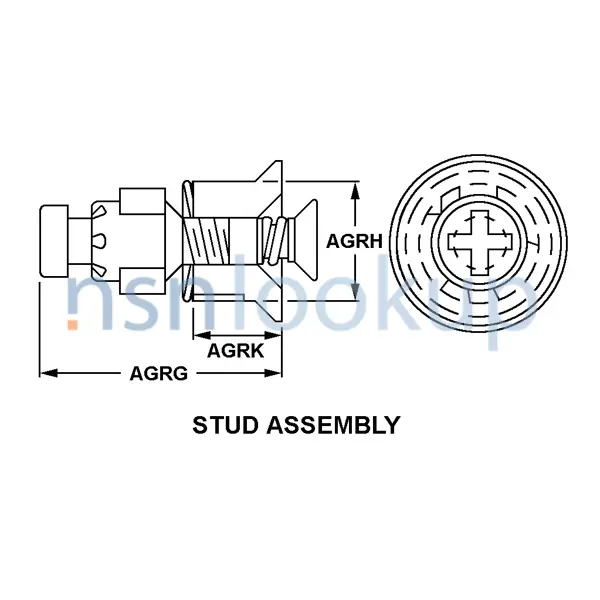

- Distance From Stud End To Largest Bearing Surface Of Eyelet [AGRG]
- 1.000 Inches Nominal
- Diameter [ABMZ]
- 0.298 Inches Minimum And 0.308 Inches Maximum
- End Item Identification [AGAV]
- Used On Eh-101 Merlin Helicopter
- Eyelet Outside Diameter [AGRH]
- 0.310 Inches Nominal
- Eyelet Length [AGRK]
- 0.322 Inches Nominal
- Material [MATT]
- Steel Pin
- Material Accommodated Thickness [AGSM]
- 0.270 Inches Minimum And 0.299 Inches Maximum
- Material Document And Classification [MDCL]
- Astm-A-228 Assn Std All Material Responses Pin
- Securing Device Type [ADQB]
- Spring
- Turnlock Stud Head Style [AGRD]
- Flat Fillister
- Stud Assembly Style [AGRE]
- Stud Assembly
- Stud Head Height [CQYY]
- 0.088 Inches Minimum And 0.098 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Ty2 Cl2 Fed Spec All Treatment Responses Pin
- Surface Treatment [SFTT]
- Cadmium Pin
NATO Stock Numbers Related to 5325-01-475-4265
Freight Information 5325-01-475-4265
5325-01-475-4265 has freight characteristics.. 5325-01-475-4265 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
