5325-01-467-5508
Nonmetallic Grommet
5325014675508 014675508 2-310-042-02 2-310-042-01
An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING. View more Nonmetallic Grommet
November 2023
7
Marketplace 5325-01-467-5508
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-467-5508 1+ Documents (More...)
RQST NE Updated Every Day 5325-01-467-5508 RQST Updated Every Day 5325-01-467-5508 RQST NE Related Documents
5325-01-467-5508 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-467-5508
Restrictions 5325-01-467-5508
5325-01-467-5508 is a Nonmetallic Grommet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-01-467-5508
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-467-5508
- US Army (A919)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- Spain (YB01)
- Effective Date:
- 1 Nov 2009
- Canada (ZC01)
- Effective Date:
- 1 Jan 2016
Approved Sources 5325-01-467-5508
- Part Number
- Manufacturer
- Status
- 2-310-042-02
- Manufacturer
- 99193 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- 2-310-042-01
- 0SML3 - Aero International, Llc (Active)
- Secondary Buy
- Secondary Buy
- 2-310-042-02
- 0SML3 - Aero International, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2-310-042-01
- 99193 - Honeywell International Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-01-467-5508
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Rubber Silicone Class Q Overall
- Color [HUES]
- Blue, Medium, Qm-O Overall

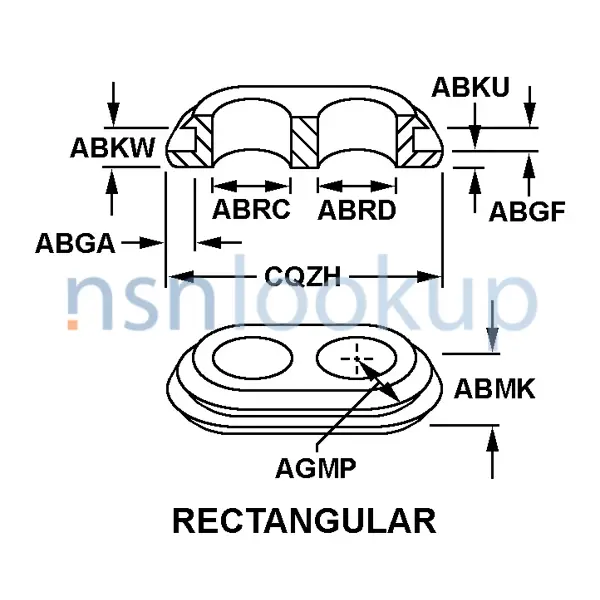

- Grommet Style [AGME]
- Rectangular
- Groove Depth [ABGA]
- 0.060 Inches Nominal
- Groove Width [ABGF]
- 0.450 Inches Nominal
- Flange Thickness [ABKU]
- 0.090 Inches Nominal
- Overall Height [ABKW]
- 0.630 Inches Nominal
- Overall Width [ABMK]
- 1.440 Inches Nominal
- First Hole Diameter [ABRC]
- 0.875 Inches Nominal
- Second Hole Diameter [ABRD]
- 0.500 Inches Nominal
- Small Flange Radius [AGMP]
- 0.720 Inches Nominal
- Grommet Overall Length [CQZH]
- 3.040 Inches Nominal
- Grommet Construction Type [AGMU]
- Solid
- Special Features [FEAT]
- Fabric Renforcement Optional
- End Item Identification [AGAV]
- 2810-01-458-5361;Engine,Aircraft,Turbo-Shaft
Weapon Systems (WSDC) 5325-01-467-5508
DLA Procurement Analysis 5325-01-467-5508
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-01-467-5508
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Jan 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5325-01-467-5508
Freight Information 5325-01-467-5508
5325-01-467-5508 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-01-467-5508 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-467-5508 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 5325-01-467-5508 is not classified as a special type of cargo when transported by water. 5325-01-467-5508 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-01-467-5508
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5325-01-467-5508 4 Records
Contracting Technical Data File (CTDF) 5325-01-467-5508 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
