5325-01-466-1032
Snapslide Fastener Latch
5325014661032 014661032 AE900285
An item which is a part of FASTENER, SNAPSLIDE and is used in conjunction with a LATCH GUIDE, SNAPSLIDE FASTENER and a STUD, SNAPSLIDE FASTENER. It is operated with a sliding motion and is secured to the stud by means of the spring action of notched rest. View more Snapslide Fastener Latch
June 2023
1
Marketplace 5325-01-466-1032
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-466-1032 2+ Documents (More...)
/fsg-53/fsc-5325/us
Updated Every Day 5325-01-466-1032 RQST NE Related Documents 5325-01-466-1032 2+ Documents ( More...
) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-466-1032 Snapslide Fastener Latch 5325014661032
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-458-6577 Flush Catch 5340014586577014586577,AE900285
Snapslide Fastener Latch 5325014661032 day Upgrade your Account Upgrade 5325-01-466-1032Snapslide
Restrictions 5325-01-466-1032
5325-01-466-1032 is a Snapslide Fastener Latch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-466-1032
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-466-1032
- US Marine Corps (MC47)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 5325-01-466-1032
- Part Number
- Manufacturer
- Status
- AE900285
- Manufacturer
- 0FNZ2 - Trend Tool, Inc. (Active)
- Primary Buy
- Primary Buy
- AE900285
- 3J615 - Austin Hardware Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-01-466-1032
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Steel Latch

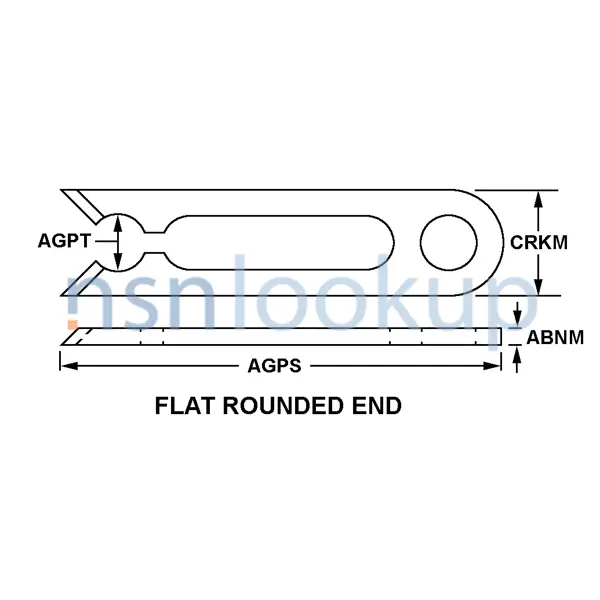

- Latch Style [AGPR]
- Flat Rounded End
- Thickness [ABNM]
- 1.250 Inches Nominal
- Latch Overall Length [AGPS]
- 4.510 Inches Nominal
- Notch Diameter [AGPT]
- 0.400 Inches Nominal
- Latch Overall Width [CRKM]
- 1.000 Inches Nominal
DLA Procurement Analysis 5325-01-466-1032
Management Data 5325-01-466-1032
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5325-01-466-1032
Freight Information 5325-01-466-1032
5325-01-466-1032 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-01-466-1032 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-466-1032 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-466-1032 is not classified as a special type of cargo when transported by water. 5325-01-466-1032 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-01-466-1032
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5325-01-466-1032 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
