5325-01-436-9981
Positive Lock Receptacle
5325014369981 014369981 643817-4 154106118-001
A platelike item used to secure the STUD, POSITIVE LOCK by means of spring jaws which grip the circumferential groove of the stud. It may incorporate a quick release for the stud which may be actuated by a screwhead, thumbscrew or remote control. View more Positive Lock Receptacle
May 2023
3
Marketplace 5325-01-436-9981
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-436-9981 1+ Documents (More...)
/fsg-53/fsc-5325/us
BUY NE FedMall Updated Every Day 5325-01-436-9981 RQST NE Updated Every Day 5325-01-436-9981 RQST
Updated Every Day 5325-01-436-9981 RQST NE Related Documents 5325-01-436-9981 1+ Documents ( More...
Restrictions 5325-01-436-9981
5325-01-436-9981 is a Positive Lock Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-01-436-9981
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2014
- Supplementary Collaborators:
- HX
- United States of America (ZZ)
Approved Sources 5325-01-436-9981
- Part Number
- Manufacturer
- Status
- 643817-4
- Manufacturer
- 00779 - Te Connectivity Corporation (Active)
- Primary Buy
- Primary Buy
- 154106118-001
- 31795 - Eaton Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5325-01-436-9981
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400

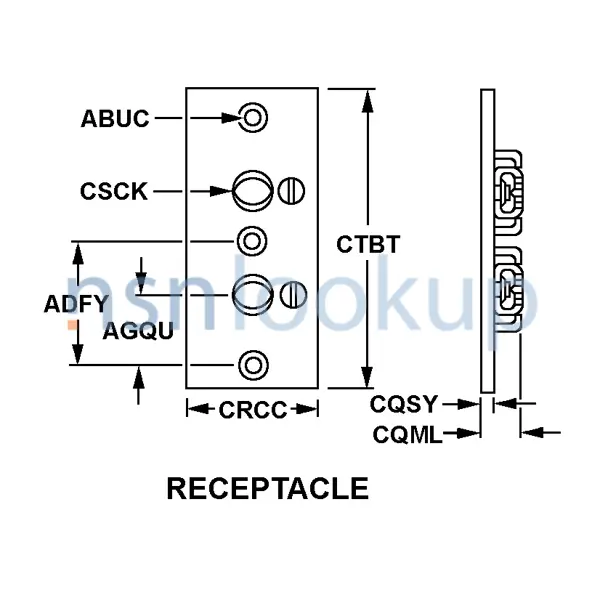

- Distance From Stud Hole Center To Mounting Hole Center [AGQU]
- 1.57 Millimeters Nominal
- Center To Center Distance Between Mounting Holes Along Length [ADFY]
- 3.96 Millimeters Nominal
- Mounting Hole Diameter [ABUC]
- 5.84 Millimeters Nominal
- Mounting Hole Type [ACHY]
- Plain
- Material [MATT]
- Plastic Polyamide Barrel
- Part Name Assigned By Controlling Agency [CXCY]
- Navy Special Project
- Positive Lock Receptacle Length [CTBT]
- 18.42 Millimeters Nominal
- Positive Lock Receptacle Style [AGQS]
- Receptacle
- Positive Lock Receptacle Height [CQML]
- 5.84 Millimeters Nominal
- Positive Lock Receptacle Width [CRCC]
- 15.85 Millimeters Nominal
- Receptacle Hole Diameter [CSCK]
- 2.54 Millimeters Nominal
- Receptacle Material Thickness [CQSY]
- 1.57 Millimeters Nominal
