5325-01-420-2439
Retaining Ring
5325014202439 014202439 CA21239C4R C9748-1
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
January 2023
10
Marketplace 5325-01-420-2439
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-420-2439 2+ Documents (More...)
/fsg-53/fsc-5325/us
(Identification) 1/3 NSN 5325-01-420-2439 (Identification) 2/3 NSN 5325-01-420-2439 (Identification
C9748-1 RING,RETAINING 4 EA NS Request Quotation Updated Every Day 5325-01-420-2439 RQST NE Updated Every
Retaining Ring 5325014202439 014202439 day Upgrade your Account Upgrade 5325-01-420-2439Retaining
Ring5325014202439 014202439 CA21239C4R C9748 C9748-1 RING,RETAINING 4 EA NS Request Quotation Updated
Restrictions 5325-01-420-2439
5325-01-420-2439 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-420-2439
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-420-2439
- Singapore (YJ01)
- Effective Date:
- 1 Jul 1998
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 2003
Approved Sources 5325-01-420-2439
- Part Number
- Manufacturer
- Status
- CA21239C4R
- Manufacturer
- 29372 - Howmet Global Fastening Systems Inc. (Active)
- Primary Buy
- Primary Buy
- C9748-1
- 81755 - Lockheed Martin Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5325-01-420-2439
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened

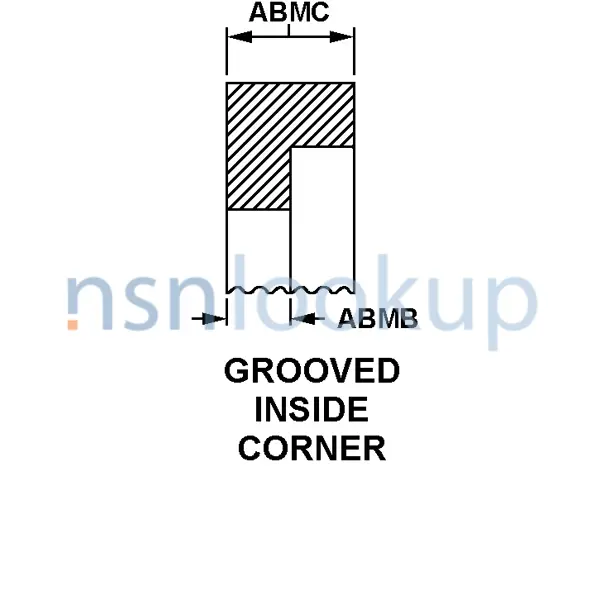

- Cross-Sectional Shape Style [AAGR]
- Grooved Inside Corner
- End Style [ABQK]
- 90 Degree Parallel
- End Item Identification [AGAV]
- F-16
- Material [MATT]
- Steel Comp 630
- Minor Thickness [ABMB]
- 0.038 Inches Minimum And 0.042 Inches Maximum
- Outside Diameter [ABKV]
- 0.429 Inches Minimum And 0.434 Inches Maximum
- Inside Diameter [AARX]
- 0.327 Inches Minimum And 0.337 Inches Maximum
- Major Thickness [ABMC]
- 0.086 Inches Minimum And 0.090 Inches Maximum
- Material Document And Classification [MDCL]
- Ams 5643, 17-4Ph Assn Std Single Material Response
- Ring Style [ACXD]
- Straight Gap
- Special Features [FEAT]
- Original Name-Retainer
- Usage Design [ALBY]
- External
- Surface Treatment [SFTT]
- Cadmium And Chromate
NATO Stock Numbers Related to 5325-01-420-2439
Freight Information 5325-01-420-2439
5325-01-420-2439 has freight characteristics.. 5325-01-420-2439 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
