5325-01-388-9112
Trim Spring Tension Fastener
5325013889112 013889112 PC47291EVZ001
A fastening device which may have a finished or unfinished cap. It is specifically designed to fasten a trim panel, molding, or the like, to another surface by means of resilient prongs which are pressed into a hole and retained by the holding action of the prongs against the edges of the hole. Excludes BUTTON, PLUG. View more Trim Spring Tension Fastener
May 2023
1
Marketplace 5325-01-388-9112
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-388-9112 1+ Documents (More...)
United States (US) 4. 5325-01-388-9112 Marketplace Restrictions Approved Sources Datasheet Management
5325-01-388-9112 BUY NE FedMall Updated Every Day 5325-01-388-9112 RQST NE Updated Every Day 5325-01
Restrictions 5325-01-388-9112
5325-01-388-9112 is a Trim Spring Tension Fastener that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-01-388-9112
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5325-01-388-9112
- Part Number
- Manufacturer
- Status
- PC47291EVZ001
- Manufacturer
- 83058 - Trw Assemblies And Fasteners Group (Obsolete)
- Original Design
- Original Design

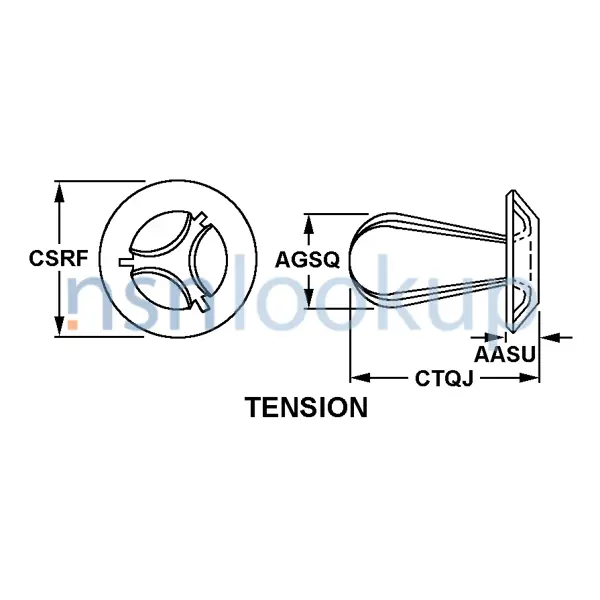

Datasheet 5325-01-388-9112
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Plastic Acetal Overall
- Fastener Style [AGSN]
- Tension
- Head Height [AASU]
- 0.060 Inches Nominal
- Prong Diameter [AGSP]
- 0.225 Inches Nominal
- Fastener Outside Diameter [CSRF]
- 0.370 Inches Nominal
- Fastener Overall Length [CTQJ]
- 0.510 Inches Nominal
- Special Features [FEAT]
- Part To Suit A 0.182 Min; 0.192 Max Dia Hole In A Panel Thk Of 0.062 Min To 0.125 Max
DLA Procurement Analysis 5325-01-388-9112
Management Data 5325-01-388-9112
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5325-01-388-9112
Freight Information 5325-01-388-9112
5325-01-388-9112 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-01-388-9112 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-388-9112 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5325-01-388-9112 is not classified as a special type of cargo when transported by water. 5325-01-388-9112 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5325-01-388-9112 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
