5325-01-365-6077
Retaining Ring
5325013656077 013656077 RS-312 50023-312-1010
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
October 2025
6
Marketplace 5325-01-365-6077
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-365-6077 2+ Documents (More...)

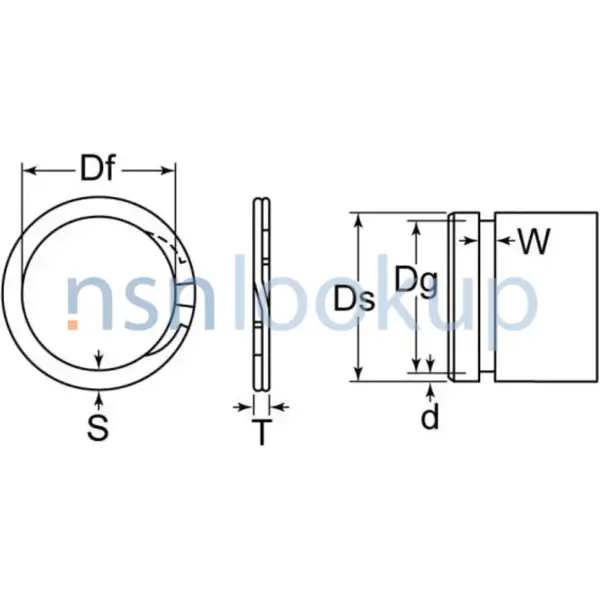

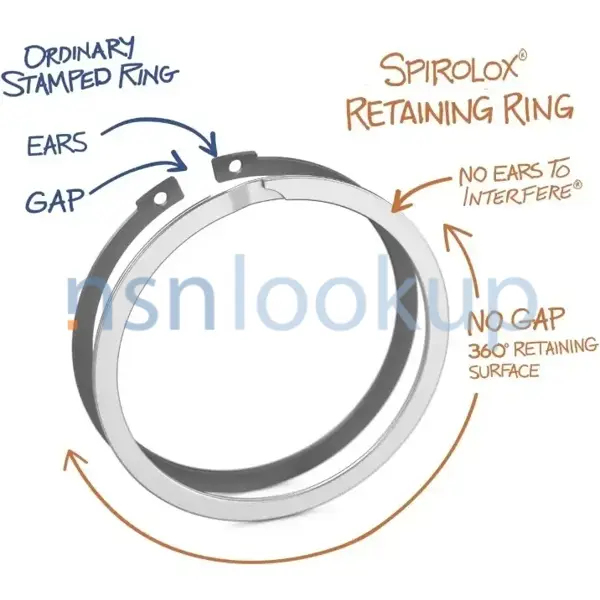

Photo 1/5 5325-01-365-6077 Photo 2/5 5325-01-365-6077 Photo 3/5 NSN 5325-01-365-6077 (Identification
RS-312 RING,RETAINING 9 EA NS Request Quotation FedMall Updated Every 15 Minutes 5325-01-365-6077 BUY
Restrictions 5325-01-365-6077
5325-01-365-6077 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-365-6077
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-365-6077
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5325-01-365-6077
- Part Number
- Manufacturer
- Status
- 50023-312-1010
- Manufacturer
- 91561 - Parker Hannifin Corporation (Active)
- Original Design
- Original Design
- RS-312
- 80756 - Spirolox Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5325-01-365-6077
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Double Oval
- Material [MATT]
- Steel Comp 1070 Or Steel Comp 1074 Or Steel Comp 1078 Or Steel Comp 1080 Or Steel Comp 1084 Or Steel Comp 1085 Or Steel Comp 1090
- Outside Diameter [ABKV]
- 3.326 Inches Minimum And 3.356 Inches Maximum
- Inside Diameter [AARX]
- 2.970 Inches Minimum And 3.000 Inches Maximum
- Major Thickness [ABMC]
- 0.058 Inches Minimum And 0.064 Inches Maximum
- Material Document And Classification [MDCL]
- Aisi 1070 Assn Std 1St Material Response And Aisi 1074 Assn Std 2Nd Material Response And Aisi 1078 Assn Std 3Rd Material Response And Aisi 1080 Assn Std 4Th Material Response And Aisi 1084 Assn Std 5Th Material Response And Aisi 1085 Assn Std 6Th Material Response And Aisi 1090 Assn Std 7Th Material Response
- Ring Style [ACXD]
- Special Flat
- Usage Design [ALBY]
- External
- Strength Rating [AWQD]
- 211000.0 Pounds Per Square Inch Minimum Tensile
DLA Procurement Analysis 5325-01-365-6077
Management Data 5325-01-365-6077
Similar Supply Items to 5325-01-365-6077
Freight Information 5325-01-365-6077
5325-01-365-6077 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-01-365-6077 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-365-6077 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-365-6077 is not classified as a special type of cargo when transported by water. 5325-01-365-6077 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-01-365-6077
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
