5325-01-365-1831
Turnlock Fastener Receptacle
5325013651831 013651831 198012-5-5-4P 03A282-5-5-4P 03A282-5-4-3P 198012-5-4-3P
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
November 2023
10
Marketplace 5325-01-365-1831
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-365-1831 2+ Documents (More...)
(Identification) 1/2 NSN 5325-01-365-1831 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5325-01-365-1831 RQST NE Updated Every Day 5325-01-365-1831 RQST
RQST NE Updated Every Day 5325-01-365-3128 RQST https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-365-1831
Turnlock Fastener Receptacle 5325013651831 1831Turnlock Fastener Receptacle5325013651831 013651831
Restrictions 5325-01-365-1831
5325-01-365-1831 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item contains Silver.
End Users 5325-01-365-1831
- National Security Agency (DGX1)
- Effective Date:
- 23 Dec 2013
- Former MOE Rule:
- DKZ1
- Supplementary Receivers:
- KZ
- US Air Force (FXGI)
- Effective Date:
- 1 May 2015
Approved Sources 5325-01-365-1831
- Part Number
- Manufacturer
- Status
- 198012-5-5-4P
- Manufacturer
- 80539 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
- 03A282-5-5-4P
- 76823 - Northrop Grumman Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 198012-5-5-4P
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 03A282-5-4-3P
- 1W025 - Northrop Grumman Systems Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 198012-5-4-3P
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-01-365-1831
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Distance Between Mounting Hole Centers [AFQM]
- 0.432 Inches Minimum And 0.442 Inches Maximum
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Material [MATT]
- Iron Alloy 660 Barrel
- Material [MATT]
- Iron Alloy 660 Retainer
- Material [MATT]
- Iron Alloy 660 Stud
- Material Document And Classification [MDCL]
- Ams5525 Assn Std Single Material Response Barrel Or Ams5732 Assn Std Single Material Response Barrel Or Ams5737 Assn Std Single Material Response Barrel
- Material Document And Classification [MDCL]
- Ams5525 Assn Std Single Material Response Retainer Or Ams5732 Assn Std Single Material Response Retainer Or Ams5737 Assn Std Single Material Response Retainer
- Material Document And Classification [MDCL]
- Ams5525 Assn Std Single Material Response Stud Or Ams5732 Assn Std Single Material Response Stud Or Ams5737 Assn Std Single Material Response Stud
- Precious Material And Location [PMLC]
- Stud Silver
- Precious Material [PRMT]
- Silver
- Receptacle Height [AGSA]
- 0.692 Inches Maximum
- Receptacle Overall Length [AGRZ]
- 0.945 Inches Maximum
- Turnlock Mounting Hole Diameter [CSYB]
- 0.098 Inches Minimum And 0.103 Inches Maximum

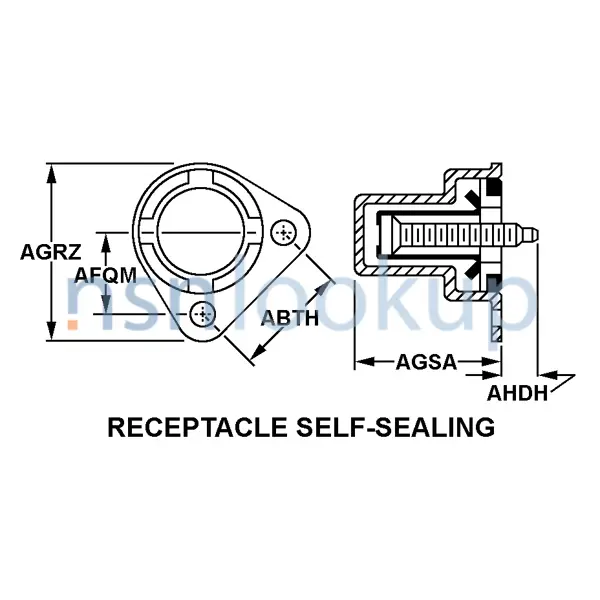

- Turnlock Receptacle Style [AGRY]
- Receptacle
- Stud Protrusion Length [AHDH]
- 0.250 Inches Nominal
- Surface Treatment [SFTT]
- Cadmium Retainer And Chromate Retainer
- Surface Treatment [SFTT]
- Passivate Stud And Silver Stud
- Surface Treatment [SFTT]
- Passivate Barrel
Weapon Systems (WSDC) 5325-01-365-1831
DLA Procurement Analysis 5325-01-365-1831
- Last Stock Position:
- 27 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-01-365-1831
Similar Supply Items to 5325-01-365-1831
Freight Information 5325-01-365-1831
5325-01-365-1831 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 094560. A Sub NMFC of X. It has a NMFC Description of FASTENERS BOX/PAIL/TUB NOI STEEL. 5325-01-365-1831 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49410 which rates the freight between FCL and LCL. 5325-01-365-1831 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5325-01-365-1831 is not classified as a special type of cargo when transported by water. 5325-01-365-1831 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
