5325-01-355-1010
Turnlock Fastener Assembly
5325013551010 013551010 CA35490-4-3 CA235490-4-3
An item consisting of a STUD, TURNLOCK FASTENER or a STUD ASSEMBLY, TURNLOCK FASTENER and a RECEPTACLE, TURNLOCK FASTENER. It is designed to provide a means for securely locking two items together and allow for quick locking or unlocking action. View more Turnlock Fastener Assembly
May 2023
3
Marketplace 5325-01-355-1010
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-355-1010 1+ Documents (More...)
(Identification) 1/4 NSN 5325-01-355-1010 (Identification) 2/4 NSN 5325-01-355-1010 (Identification
BUY NE FedMall Updated Every Day 5325-01-355-1010 RQST NE Updated Every Day 5325-01-355-1010 RQST
Restrictions 5325-01-355-1010
5325-01-355-1010 is a Turnlock Fastener Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-355-1010
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-355-1010
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
Approved Sources 5325-01-355-1010
- Part Number
- Manufacturer
- Status
- CA35490-4-3
- Manufacturer
- 29372 - Howmet Global Fastening Systems Inc. (Active)
- Primary Buy
- Primary Buy
- CA235490-4-3
- 29372 - Howmet Global Fastening Systems Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-01-355-1010
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Body Thickness [ADPR]
- 0.0115 Inches Nominal

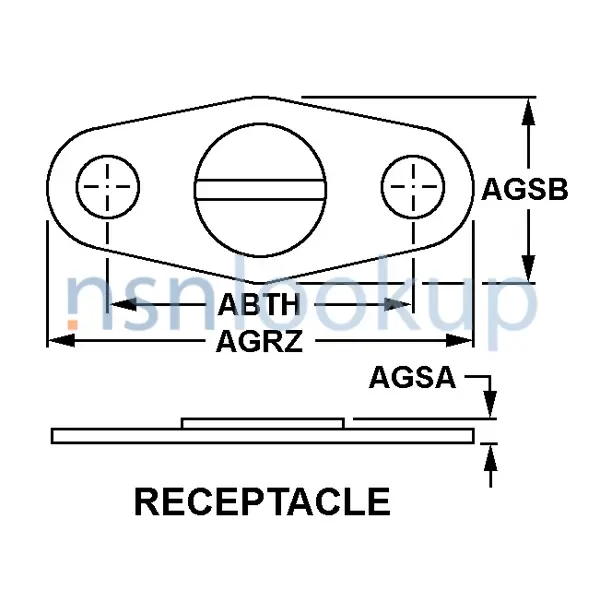

- Center To Center Distance Between Mounting Holes [ABTH]
- 0.685 Inches Minimum And 0.689 Inches Maximum
- Eyelet Height [AGRR]
- 0.189 Inches Nominal
- Eyelet Inside Diameter [CSDT]
- 0.252 Inches Minimum And 0.256 Inches Maximum
- Grip Length [AATQ]
- 0.412 Inches Minimum And 0.444 Inches Maximum
- Material Document And Classification [MDCL]
- Qq-S-763 Fed Spec Single Material Response Grommetams5528 Assn Std Single Material Response Receptaclemil-S-6049 Mil Spec Single Material Response Nut Or Mil-S-5626 Mil Spec Single Material Response Nut
- Material [MATT]
- Steel Comp 304 Grommetsteel Receptaclesteel Comp 8740 Nut
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Largest Outside Diameter [AGWM]
- 0.336 Inches Nominal
- Material Accommodated Thickness [AGSM]
- 0.110 Inches Minimum And 0.139 Inches Maximum
- Securing Device Type [ADQB]
- Grommet
- Turnlock Eyelet Style [AGRQ]
- Eyelet
- Turnlock Mounting Hole Diameter [CSYB]
- 0.098 Inches Minimum And 0.103 Inches Maximum
- Turnlock Receptacle Style [AGRY]
- Receptacle
- Turnlock Stud Shank Style [AGQY]
- Stud Shank
- Stud Shank Major Diameter [CSGB]
- 0.375 Inches Nominal
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Grommetqq-P-35 Fed Spec Single Treatment Response Receptacleqq-P-416,Ty 2,Cl 2 Fed Spec Single Treatment Response Nut
- Surface Treatment [SFTT]
- Passivate Grommetpassivate Receptaclecadmium Nut And Chromate Nut
DLA Procurement Analysis 5325-01-355-1010
Management Data 5325-01-355-1010
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5325-01-355-1010
Freight Information 5325-01-355-1010
5325-01-355-1010 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-01-355-1010 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-355-1010 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-355-1010 is not classified as a special type of cargo when transported by water. 5325-01-355-1010 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-01-355-1010
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5325-01-355-1010 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
