5325-01-354-5738
Turnlock Fastener Receptacle
5325013545738 013545738 110-045-17 3590-H17-AC1Y PR35H017MCY
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
November 2023
7
Marketplace 5325-01-354-5738
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-354-5738 1+ Documents (More...)
(Identification) 1/2 NSN 5325-01-354-5738 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5325-01-354-5738 RQST Updated Every Day 5325-01-354-5738 RQST NE Related Documents
Restrictions 5325-01-354-5738
5325-01-354-5738 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-01-354-5738
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5325-01-354-5738
- Part Number
- Manufacturer
- Status
- 110-045-17
- Manufacturer
- 97499 - Bell Textron Inc (Active)
- Primary Buy
- Primary Buy
- 3590-H17-AC1Y
- 72794 - Southco Inc (Active)
- Primary Buy
- Primary Buy
- PR35H017MCY
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-01-354-5738
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400

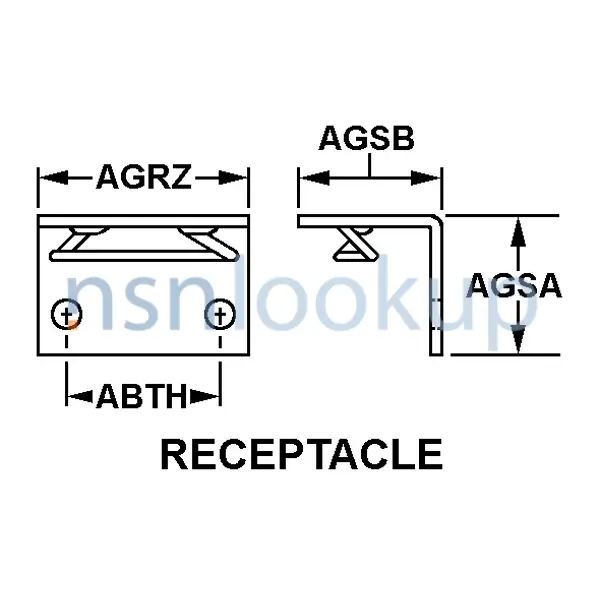

- Center To Center Distance Between Mounting Holes [ABTH]
- 0.3730 Inches Minimum And 0.3770 Inches Maximum
- Material Document And Classification [MDCL]
- Qq-A-200/8 Fed Spec Single Material Response Overall Or Qq-W-423 Fed Spec Single Material Response Overall
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Material [MATT]
- Aluminum Alloy 6061 Or Steel Comp 316 Overall
- Receptacle Height [AGSA]
- 0.6250 Inches Nominal
- Receptacle Overall Length [AGRZ]
- 3.5000 Inches Nominal
- Receptacle Width [AGSB]
- 0.2760 Inches Minimum And 0.2860 Inches Maximum
- Turnlock Mounting Hole Diameter [CSYB]
- 0.1280 Inches Nominal
- Turnlock Receptacle Style [AGRY]
- Receptacle
