5325-01-323-3132

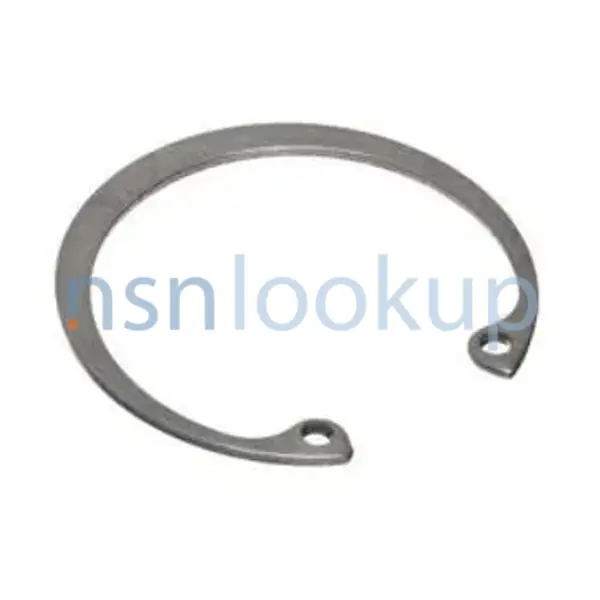

Retaining Ring
5325013233132 013233132 MIL-DTL-21248 6397291-76 MS16625-4325 MIL-R-21248
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
November 2023
10
Marketplace 5325-01-323-3132
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-323-3132 5+ Documents (More...)
/fsg-53/fsc-5325/us
Photo 1/3 NSN 5325-01-323-3132 (Identification) 2/3 NSN 5325-01-323-3132 (Identification) 3/3 -
Updated Every Day 5325-01-323-3132 RQST NE Updated Every Day 5325-01-323-3132 RQST Updated Every Day
to be 5100 A resilient metal item, circular A resilient MS16624-4046 MIL-R-21248 5100-46H P2499-432
MS16624-23 MIL-R-21248 TY I CL 2 A resilient metal item, circular or nearly circular, which is
/fsg-53/fsc-5325/us
Retaining Ring 5325013233132 013233132 6397291-76 MS16625-4325 MIL-R-21248 A resilient metal item
, circular or nearly circular, which MIL-R-21248 A resilient metal item, circular or nearly circular,
5325014360117014360117 5100-46H P2499-432 3100-46 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-323-3132
Retaining Ring 5325013233132 013233132 53250132331320132331326397291-76MS16625-4325MIL-R-21248
/fsg-53/fsc-5325/us
5100 A resilient metal item, circular A resilient MS16624-4046 MIL-R-21248 5100-46H P2499-432 3100
-46 https/ https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-323-3132 Retaining Ring 5325013233132
Restrictions 5325-01-323-3132
5325-01-323-3132 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-323-3132
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-323-3132
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HDJB
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
Approved Sources 5325-01-323-3132
- Part Number
- Manufacturer
- Status
- MS16625-4325
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-21248
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 6397291-76
- 53711 - Naval Sea Systems Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MIL-R-21248
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-01-323-3132
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Rectangular
- Material Hardness Rating [ALME]
- 44.0 Rockwell C Minimum And 51.0 Rockwell C Maximum
- Material [MATT]
- Steel Comp 632
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class
- Outside Diameter [ABKV]
- 3.568 Inches Minimum And 3.678 Inches Maximum
- Major Thickness [ABMC]
- 0.106 Inches Minimum And 0.112 Inches Maximum
- Material Document And Classification [MDCL]
- Ams 5520 Assn Std Single Material Response
- Ring Style [ACXD]
- Internal
- Usage Design [ALBY]
- Internal
- Surface Treatment [SFTT]
- Passivate
Weapon Systems (WSDC) 5325-01-323-3132
DLA Procurement Analysis 5325-01-323-3132
- Last Stock Position:
- 36 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-01-323-3132
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-01-323-3132
Freight Information 5325-01-323-3132
5325-01-323-3132 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-01-323-3132 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-323-3132 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-323-3132 is not classified as a special type of cargo when transported by water. 5325-01-323-3132 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
