5325-01-321-0608
Turnlock Fastener Stud
5325013210608 013210608 5189396-002 5189396 85-10-380-20
A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning. View more Turnlock Fastener Stud
November 2023
10
Marketplace 5325-01-321-0608
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-321-0608 3+ Documents (More...)
Stud 5325013210608 5189396-002518939685-10-380-20 A pinlike item designed to turn within and be held
Day 5325-01-321-0608 RQST Updated Every Day 5325-01-321-0608 RQST NE Related Documents 5325-01-321-0608
Turnlock Fastener Stud 5325013210608 day Upgrade your Account Upgrade 5325-01-321-0608Turnlock
Fastener Stud5325013210608 013210608 5189396-002 0608 RQST NE Related Documents 5325-01-321-0608 https
//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-321-0608 Turnlock Fastener Stud 5325013210608 a day Upgrade
your Account Upgrade 5325-01-321-0608Turnlock Fastener Stud5325013210608 013210608 5189396 -002 5189396
Restrictions 5325-01-321-0608
5325-01-321-0608 is a Turnlock Fastener Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-321-0608
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-321-0608
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
- Australia (ZA01)
- Effective Date:
- 1 Jun 1993
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Oct 1997
Approved Sources 5325-01-321-0608
- Part Number
- Manufacturer
- Status
- 85-10-380-20
- Manufacturer
- 94222 - Southco Inc (Active)
- Original Design
- Original Design
- 5189396
- 53711 - Naval Sea Systems Command (Active)
- Vendor Drawing
- Vendor Drawing
- 5189396-002
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5325-01-321-0608
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Drive Type [AKCV]
- Slotted
- Grip Length [AATQ]
- 0.640 Inches Nominal
- Head Length [ABQW]
- 1.120 Inches Nominal
- Material [MATT]
- Steel Corrosion Resisting Overall
- Material Accommodated Thickness [AGSM]
- 0.640 Inches Nominal
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Overall
- Shank Neck Length [CQYN]
- 0.485 Inches Nominal

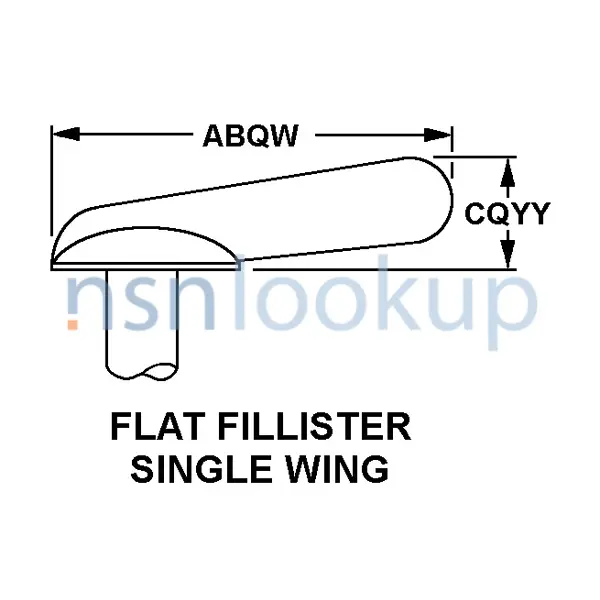

- Turnlock Stud Head Style [AGRD]
