5325-01-277-4467
Trim Spring Tension Fastener
5325012774467 012774467 6476023810 647602381 PC47602
A fastening device which may have a finished or unfinished cap. It is specifically designed to fasten a trim panel, molding, or the like, to another surface by means of resilient prongs which are pressed into a hole and retained by the holding action of the prongs against the edges of the hole. Excludes BUTTON, PLUG. View more Trim Spring Tension Fastener
November 2023
8
Marketplace 5325-01-277-4467
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-277-4467 1+ Documents (More...)
United States (US) 4. 5325-01-277-4467 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5325-01-277-4467 RQST Updated Every Day 5325-01-277-4467 RQST NE Related
Restrictions 5325-01-277-4467
5325-01-277-4467 is a Trim Spring Tension Fastener that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-01-277-4467
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- Singapore (YJ01)
- Effective Date:
- 1 Dec 2004
Approved Sources 5325-01-277-4467
- Part Number
- Manufacturer
- Status
- 6476023810
- Manufacturer
- 4MAG2 - Trw Automotive Inc (Active)
- Primary Buy
- Primary Buy
- 647602381
- 4MAG2 - Trw Automotive Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6476023810
- 72016 - Cleveland Gasket And Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 6476023810
- 1L906 - Arden Fasteners Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- PC47602
- 83058 - Trw Assemblies And Fasteners Group (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-01-277-4467
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400

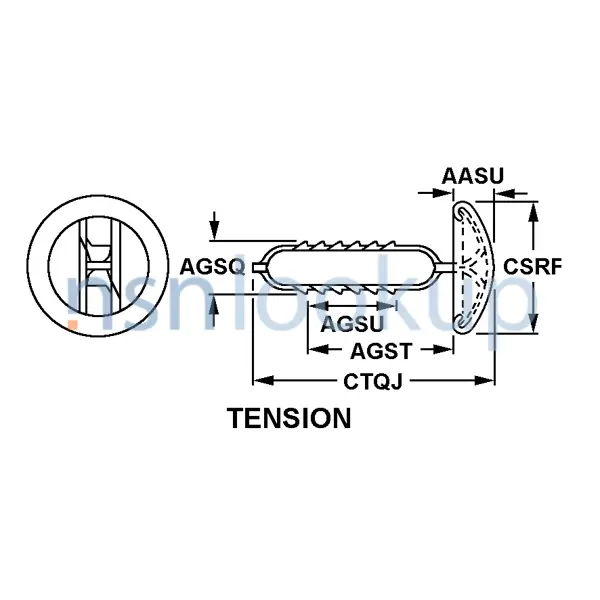

- Material [MATT]
- Plastic Polyhexamethylene Adipamide Overall
- Fastener Style [AGSN]
- Tension
- Head Height [AASU]
- 0.090 Inches Nominal
- Largest Prong Width [AGSQ]
- 0.262 Inches Nominal
- Length From Head To Tooth Grip End [AGST]
- 0.572 Inches Nominal
- Tooth Grip End Length [AGSU]
- 0.512 Inches Nominal
- Fastener Outside Diameter [CSRF]
- 0.650 Inches Nominal
- Fastener Overall Length [CTQJ]
- 0.864 Inches Nominal
- Special Features [FEAT]
- Color Light Grey
