5325-01-269-8362
Retaining Ring
5325012698362 012698362 MIL-DTL-21248 N5000-31-S-PP 3000-X31-ST-PA MS16625-3031 NAS669-31P
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
November 2023
21
Marketplace 5325-01-269-8362
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-269-8362 5+ Documents (More...)
/fsg-53/fsc-5325/us

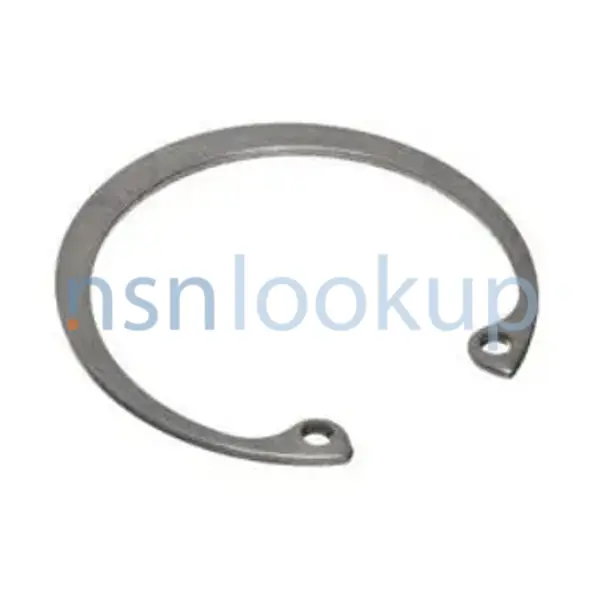

Photo 1/3 NSN 5325-01-269-8362 (Identification) 2/3 NSN 5325-01-269-8362 (Identification) 3/3 -
MS16625-3031 RING,RETAINING 88 EA NS Request Quotation Updated Every Day 5325-01-269-8362 RQST NE Updated
/fsg-53/fsc-5325/uk
Retaining Ring 5325012698362 012698362 Upgrade your Account Upgrade 5325-01-269-8362Retaining Ring5325012698362
012698362 MIL-DTL-21248 N5000-31 Retaining Ring 5325996519859996519859 Every Day 5340-00-805-6903 RQST
/fsg-53/fsc-5325/us
NumberManufacturerStatusMS16624-2550 96906 - Military Standards (Active) Definitive Standard RNCC 2 RNVC 2 DAC 4 MIL-DTL-21248
/fsg-53/fsc-5325/us
for $1 a day Upgrade your Account Upgrade 5325-01-456-8179Retaining Ring5325014568179 014568179 MIL-DTL-21248
for $1 a day Upgrade your Account Upgrade 5325-01-437-7630Retaining Ring5325014377630 014377630 MIL-DTL-21248
/fsg-53/fsc-5325/us
for $1 a day Upgrade your Account Upgrade 5325-01-583-9347Retaining Ring5325015839347 015839347 MIL-DTL-21248
for $1 a day Upgrade your Account Upgrade 5325-01-684-8701Retaining Ring5325016848701 016848701 MIL-DTL-21248
Restrictions 5325-01-269-8362
5325-01-269-8362 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-269-8362
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-269-8362
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Feb 2010
Approved Sources 5325-01-269-8362
- Part Number
- Manufacturer
- Status
- MS16625-3031
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-21248
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- N5000-31-S-PP
- 07382 - Rotor Clip Company, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 3000-X31-ST-PA
- 07382 - Rotor Clip Company, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- NAS669-31P
- 80205 - National Aerospace Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- N5000-31-S-PP
- 79136 - Truarc Company Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3000-X31-ST-PA
- 97464 - Truarc Co Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-01-269-8362
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Material [MATL]
- Steel, Fed Std 66, Comp 1070 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1078 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1080 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1084 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1090
- Surface Treatment [SURF]
- Phosphate, Dod-P-16232
- Material Hardness Rating [ALME]
- 86.0 Rockwell Superficial 15-N Minimum And
- Material Hardness Rating [ALME]
- 88.0 Rockwell Superficial 15-N Maximum
- Casehardening Indicator [AASG]
- Not Casehardened
- Ring Style [ACXD]
- Internal
- Outside Diameter [ABKV]
- 0.341 Inches Minimum And
- Outside Diameter [ABKV]
- 0.356 Inches Maximum
- Cross-Sectional Shape Style [AAGR]
- Rectangular
- Major Thickness [ABMC]
- 0.013 Inches Minimum And
- Major Thickness [ABMC]
- 0.017 Inches Maximum
- Usage Design [ALBY]
- Internal
- Definitive Government Spec/Std Reference Or Manufacturers Code [SR-1]
- Definitive Government Spec/Std Reference Or Manufacturers Code [SR-1]
- 96906
- Definitive Government Spec/Std Reference Or Manufacturers Code [SR-1]
- Ms16625-3031
