5325-01-257-4599

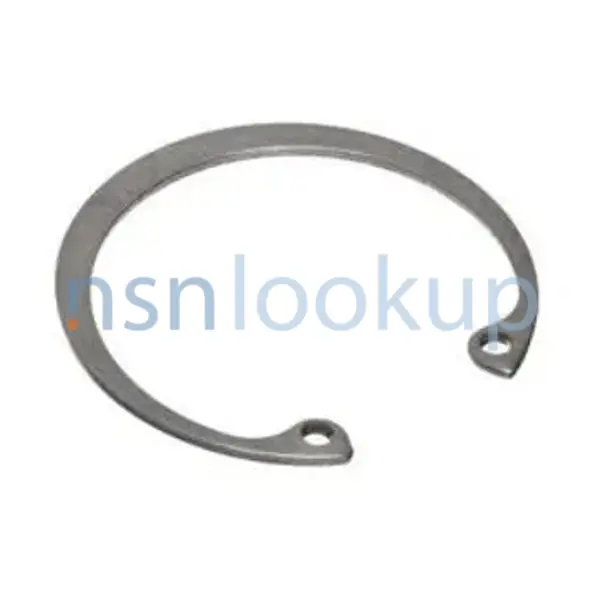

Retaining Ring
5325012574599 012574599 MIL-DTL-21248 N5000-106-S-PP MS16625-3106 3000-X106-ST-PA
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
November 2023
19
Marketplace 5325-01-257-4599
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-257-4599 5+ Documents (More...)
/fsg-53/fsc-5325/us
Photo 1/3 NSN 5325-01-257-4599 (Identification) 2/3 NSN 5325-01-257-4599 (Identification) 3/3 -
RQST NE Updated Every Day 5325-01-257-4599 RQST Updated Every Day 5325-01-257-4599 RQST NE Related Documents
/fsg-53/fsc-5325/us
Retaining Ring 5325012574599 012574599 Upgrade your Account Upgrade 5325-01-257-4599Retaining Ring5325012574599
012574599 MIL-DTL-21248 N5000-106 E MIL-DTL-21248 81349 - Military Specifications (Active) Incomplete
/fsg-53/fsc-5325/us
NumberManufacturerStatusMS16624-2550 96906 - Military Standards (Active) Definitive Standard RNCC 2 RNVC 2 DAC 4 MIL-DTL-21248
/fsg-53/fsc-5325/us
for $1 a day Upgrade your Account Upgrade 5325-01-456-8179Retaining Ring5325014568179 014568179 MIL-DTL-21248
for $1 a day Upgrade your Account Upgrade 5325-01-437-7630Retaining Ring5325014377630 014377630 MIL-DTL-21248
/fsg-53/fsc-5325/us
for $1 a day Upgrade your Account Upgrade 5325-01-583-9347Retaining Ring5325015839347 015839347 MIL-DTL-21248
for $1 a day Upgrade your Account Upgrade 5325-01-684-8701Retaining Ring5325016848701 016848701 MIL-DTL-21248
Restrictions 5325-01-257-4599
5325-01-257-4599 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
