5325-01-248-1593
Retaining Ring
5325012481593 012481593 MIL-DTL-21248 MS16625-3112
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
November 2023
15
Marketplace 5325-01-248-1593
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-248-1593 5+ Documents (More...)
/fsg-53/fsc-5325/us

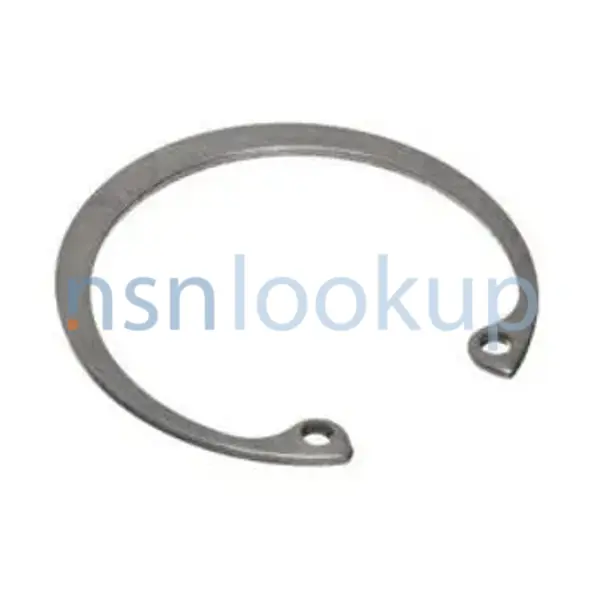

Photo 1/3 NSN 5325-01-248-1593 (Identification) 2/3 NSN 5325-01-248-1593 (Identification) 3/3 -
MS16625-3112 RING 100 EA NS Request Quotation Updated Every Day 5325-01-248-1593 RQST NE Updated Every
/fsg-53/fsc-5325/us
NumberManufacturerStatusMS16624-2550 96906 - Military Standards (Active) Definitive Standard RNCC 2 RNVC 2 DAC 4 MIL-DTL-21248
/fsg-53/fsc-5325/us
for $1 a day Upgrade your Account Upgrade 5325-01-456-8179Retaining Ring5325014568179 014568179 MIL-DTL-21248
for $1 a day Upgrade your Account Upgrade 5325-01-437-7630Retaining Ring5325014377630 014377630 MIL-DTL-21248
/fsg-53/fsc-5325/us
for $1 a day Upgrade your Account Upgrade 5325-01-583-9347Retaining Ring5325015839347 015839347 MIL-DTL-21248
for $1 a day Upgrade your Account Upgrade 5325-01-684-8701Retaining Ring5325016848701 016848701 MIL-DTL-21248
/fsg-53/fsc-5325/us
day Upgrade your Account Upgrade 5325-00-006-6657Retaining Ring5325000066657 000066657 000043138 MIL-DTL-21248
day Upgrade your Account Upgrade 5325-00-006-6657Retaining Ring5325000066657 000066657 000043138 MIL-DTL-21248
Restrictions 5325-01-248-1593
5325-01-248-1593 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-248-1593
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-248-1593
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Mar 2002
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 2006
- Denmark (ZS01)
- Effective Date:
- 1 Mar 2003
Approved Sources 5325-01-248-1593
- Part Number
- Manufacturer
- Status
- MS16625-3112
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-21248
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5325-01-248-1593
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Rectangular
- Material Hardness Rating [ALME]
- 47.0 Rockwell C Minimum And 52.0 Rockwell C Maximum
- Material [MATT]
- Steel Comp 1060 Or Steel Comp 1561 Or Steel Comp 1064 Or Steel Comp 1065 Or Steel Comp 1566 Or Steel, Fed Std 66, Comp 1069 Or Steel Comp 1070 Or Steel Comp 1572 Or Steel Comp 1074 Or Steel Comp 1075 Or Steel Comp 1078 Or Steel Comp 1080 Or Steel Comp 1070 Or Steel Comp 1085 Or Steel Comp 1086 Or Steel Comp 1090 Or Steel Comp 1095
- Outside Diameter [ABKV]
- 1.229 Inches Minimum And 1.274 Inches Maximum
- Major Thickness [ABMC]
- 0.048 Inches Minimum And 0.052 Inches Maximum
- Material Document And Classification [MDCL]
- Fed Std 66, Comp 1060 Fed Std 1St Material Response And Fed Std 66, Comp 1061 Fed Std 2Nd Material Response And Fed Std 66, Comp 1064 Fed Std 3Rd Material Response And Fed Std 66, Comp 1065 Fed Std 4Th Material Response And Fed Std 66, Comp 1066 Fed Std 5Th Material Response And Fed Std 66, Comp 1070 Fed Std 7Th Material Response And Fed Std 66, Comp 1072 Fed Std 8Th Material Response And Fed Std 66, Comp 1074 Fed Std 9Th Material Response And Fed Std 66, Comp 1075 Fed Std 10Th Material Response And Fed Std 66, Comp 1078 Fed Std 11Th Material Response And Fed Std 66, Comp 1080 Fed Std 12Th Material Response And Fed Std 66, Comp 1084 Fed Std 13Th Material Response And Fed Std 66, Comp 1085 Fed Std 14Th Material Response And Fed Std 66, Comp 1086 Fed Std 15Th Material Response And Fed Std 66, Comp 1090 Fed Std 16Th Material Response And Fed Std 66, Comp 1095 Fed Std 17Th Material Response
- Ring Style [ACXD]
- Internal
- Usage Design [ALBY]
- Internal
- Surface Treatment Document And Classification [STDC]
- Dod-P-16232, Type Z, Class 2 Def Stan/Spec Single Treatment Response
- Surface Treatment [SFTT]
- Phosphate Zinc
