5325-01-239-6487

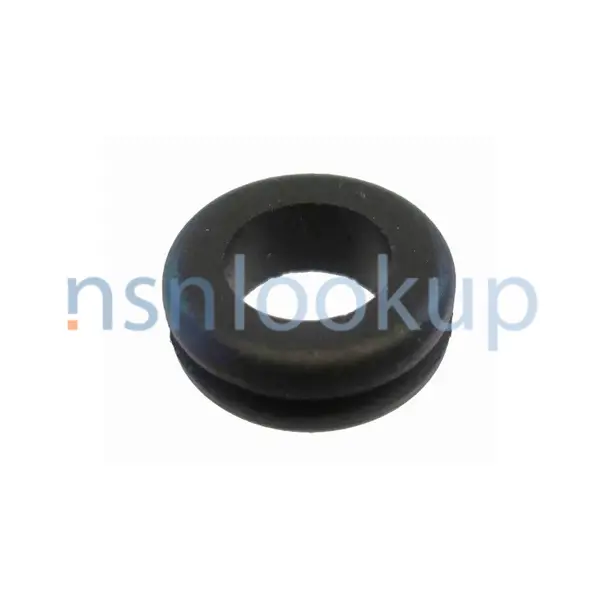

Nonmetallic Grommet
5325012396487 012396487 MS35489-135-S
An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING. View more Nonmetallic Grommet
May 2023
7
Marketplace 5325-01-239-6487
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-239-6487 3+ Documents (More...)
5325-01-239-6487 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-239-6487
Updated Every Day 5325-01-239-6487 RQST Updated Every Day 5325-01-239-6487 RQST NE Related Documents
Nonmetallic Grommet 5325012396487 012396487 www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-263-6648
Nonmetallic Grommet 5325012396487 012396487 $1 a day Upgrade your Account Upgrade 5325-01-239-6487Nonmetallic
Grommet5325012396487 012396487 MS35489-135 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-560-
Restrictions 5325-01-239-6487
5325-01-239-6487 is a Nonmetallic Grommet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-01-239-6487
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-239-6487
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-01-239-6487
- Part Number
- Manufacturer
- Status
- MS35489-135-S
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
Datasheet 5325-01-239-6487
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Color [HUES]
- Black Overall
- Features Provided [CBBL]
- Grommet And Oil Resistant
- Flange Thickness [ABKU]
- 0.093 Inches Nominal
- Grommet Construction Type [AGMU]
- Split
- Grommet Style [AGME]
- Round
- Groove Outside Diameter [AGMH]
- 1.250 Inches Nominal
- Groove Width [ABGF]
- 0.062 Inches Nominal
- Hole Diameter [AAUB]
- 0.750 Inches Nominal
- Material [MATT]
- Rubber Synthetic Overall
- Large Flange Outside Diameter [AGMF]
- 1.625 Inches Nominal
- Material Document And Classification [MDCL]
- Mil-G-3036 Mil Spec Single Material Response Barrel
- Overall Height [ABKW]
- 0.250 Inches Nominal
Similar Supply Items to 5325-01-239-6487
Freight Information 5325-01-239-6487
5325-01-239-6487 has freight characteristics managed by Germany.. 5325-01-239-6487 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
