5325-01-206-5188
Turnlock Fastener Receptacle
5325012065188 012065188 9M838C1 12R1-1BD
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
November 2023
8
Marketplace 5325-01-206-5188
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-206-5188 1+ Documents (More...)
(Identification) 1/2 NSN 5325-01-206-5188 (Identification) 2/2 - - 1.
United States (US) 4. 5325-01-206-5188 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 5325-01-206-5188
5325-01-206-5188 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-01-206-5188
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5325-01-206-5188
- Part Number
- Manufacturer
- Status
- 9M838C1
- Manufacturer
- 76301 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
- 12R1-1BD
- 71286 - Howmet Global Fastening Systems Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5325-01-206-5188
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Center To Center Distance Between Mounting Holes [ABTH]
- 0.497 Inches Minimum And 0.503 Inches Maximum
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Material [MATT]
- Steel Comp 301 Or Steel Comp 302 Or Steel Comp 303 Or Steel Comp 305 Or Steel Comp 316 Overall
- Receptacle Height [AGSA]
- 0.114 Inches Maximum
- Receptacle Overall Length [AGRZ]
- 0.660 Inches Minimum And 0.700 Inches Maximum
- Receptacle Width [AGSB]
- 0.285 Inches Nominal
- Turnlock Mounting Hole Diameter [CSYB]
- 0.065 Inches Minimum And 0.071 Inches Maximum

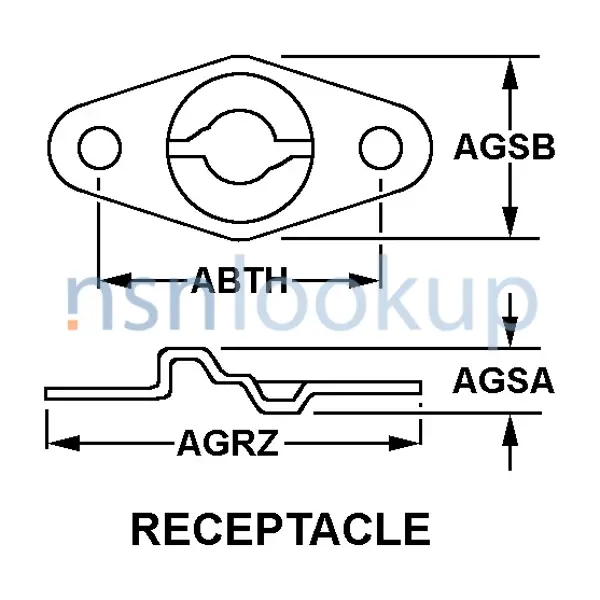

- Turnlock Receptacle Style [AGRY]
- Receptacle
- Surface Treatment Document And Classification [STDC]
- Mil-C-13924 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
Weapon Systems (WSDC) 5325-01-206-5188
DLA Procurement Analysis 5325-01-206-5188
- Last Stock Position:
- 16 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-01-206-5188
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-01-206-5188
Freight Information 5325-01-206-5188
5325-01-206-5188 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-01-206-5188 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-01-206-5188 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-206-5188 is not classified as a special type of cargo when transported by water. 5325-01-206-5188 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
