5325-01-206-5105
Turnlock Fastener Receptacle
5325012065105 012065105 SCQ4-25 1219-QC425-ZY SQC4-25
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
November 2023
10
Marketplace 5325-01-206-5105
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-206-5105 4+ Documents (More...)
SQC4-25 RECEPTACLE,TURNLOCK FASTENER 250 EA NS Request Quotation Updated Every Day 5325-01-206-5105 RQST
NE Updated Every Day 5325-01-206-5105 RQST Updated Every Day 5325-01-206-5105 RQST NE Related Documents
1219-QC425-ZY SQC4-25 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-654-6715 Turnlock https
//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-206-5105 Turnlock Fastener Receptacle 5325012065105 Upgrade
Turnlock Fastener Receptacle 5325143791735 Receptacle5325996539793 996539793 SQC4-25 AZ AMC 4 AMSC
https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-206-5105 Turnlock Fastener Receptacle 5325012065105
/fr 5325-14-379-1735 Turnlock Fastener Receptacle 5325143791735 Receptacle5325996539793 996539793 SQC4-25
AZ AMC 4 AMSC H IMC Z IMCACTY AZ Approved Sources 5325-01-654-6715 Receptacle5325012065105 012065105
Restrictions 5325-01-206-5105
5325-01-206-5105 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-01-206-5105
- National Security Agency (DGX1)
- Effective Date:
- 1 Jan 2014
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2014
- Supplementary Collaborators:
- HDKEHX
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-01-206-5105
- Part Number
- Manufacturer
- Status
- 1219-QC425-ZY
- Manufacturer
- 72794 - Southco Inc (Active)
- Primary Buy
- Primary Buy
- SQC4-25
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SCQ4-25
- 72794 - Southco Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5325-01-206-5105
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Mounting Style [ADER]
- Plain
- Material [MATT]
- Steel Ejector Spring
- Material [MATT]
- Steel Receptacle
- Material [MATT]
- Steel Receptacle Plate
- Material Document And Classification [MDCL]
- Aisi,Comp 1074 Assn Std Single Material Response Receptacle
- Material Document And Classification [MDCL]
- Aisi,Comp 1074 Assn Std Single Material Response Receptacle Plate

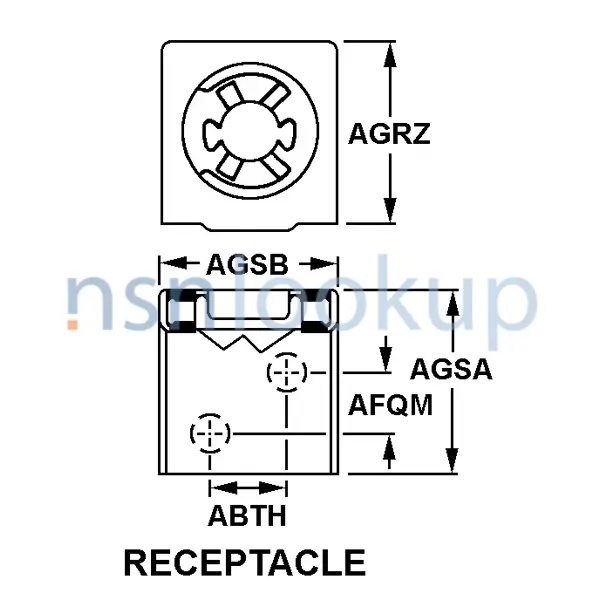

- Receptacle Height [AGSA]
- 0.472 Inches Nominal
- Receptacle Overall Length [AGRZ]
- 0.580 Inches Nominal
- Receptacle Width [AGSB]
- 0.480 Inches Nominal
- Special Features [FEAT]
- 0.079 In. Min,0.098 In. Max Matlthk
- Turnlock Receptacle Style [AGRY]
- Receptacle
- Surface Treatment Document And Classification [STDC]
- Mil-C-81562,Ty 2,Cl 2 Mil Spec All Treatment Responses Ejector Spring
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Cl 2,Ty 2 Fed Spec All Treatment Responses Receptacle
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Cl 2,Ty 2 Fed Spec All Treatment Responses Receptacle Plate
- Surface Treatment [SFTT]
- Cadmium Ejector Spring And Chromate Ejector Spring
- Surface Treatment [SFTT]
- Cadmium Receptacle And Chromate Receptacle
- Surface Treatment [SFTT]
- Cadmium Receptacle Plate And Chromate Receptacle Plate
Weapon Systems (WSDC) 5325-01-206-5105
DLA Procurement Analysis 5325-01-206-5105
- Last Stock Position:
- 240 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-01-206-5105
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-01-206-5105
Freight Information 5325-01-206-5105
5325-01-206-5105 has freight characteristics managed by Germany.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-01-206-5105 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-01-206-5105 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-206-5105 is not classified as a special type of cargo when transported by water. 5325-01-206-5105 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-01-206-5105
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Any bag or sack used by the vendor
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5325-01-206-5105 3 Records
Contracting Technical Data File (CTDF) 5325-01-206-5105 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
