5325-01-160-4691
Retaining Ring
5325011604691 011604691 MIL-DTL-21248 MS16625-3093
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
November 2023
16
Marketplace 5325-01-160-4691
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-160-4691 5+ Documents (More...)
/fsg-53/fsc-5325/us

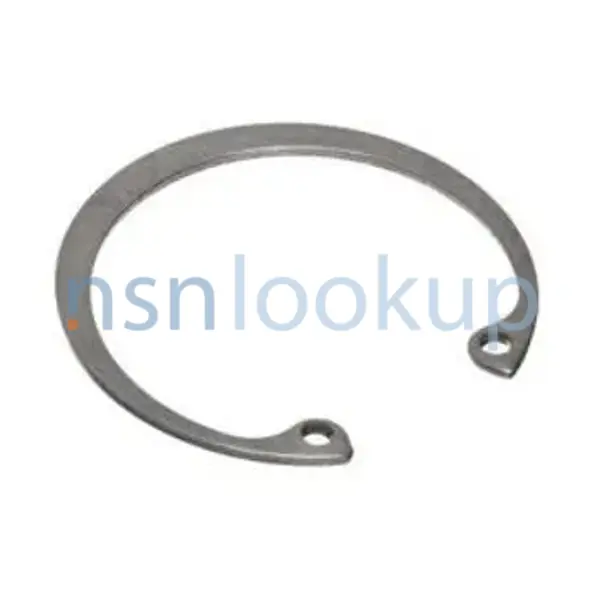

Photo 1/3 NSN 5325-01-160-4691 (Identification) 2/3 NSN 5325-01-160-4691 (Identification) 3/3 -
MS16625-3093 RING,RETAINING 154 EA NS Request Quotation Updated Every Day 5325-01-160-4691 RQST NE Updated
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
Restrictions 5325-01-160-4691
5325-01-160-4691 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-160-4691
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-160-4691
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Mar 2005
Approved Sources 5325-01-160-4691
- Part Number
- Manufacturer
- Status
- MS16625-3093
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-21248
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5325-01-160-4691
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Rectangular
- Material Hardness Rating [ALME]
- 66.0 Rockwell Superficial 30-N Minimum And 71.0 Rockwell Superficial 30-N Maximum
- Material [MATT]
- Steel Comp 1566 Or Steel, Fed Std 66, Comp 1069 Or Steel Comp 1070 Or Steel Comp 1572 Or Steel Comp 1074 Or Steel Comp 1075 Or Steel Comp 1078 Or Steel Comp 1080 Or Steel Comp 1070 Or Steel Comp 1086 Or Steel Comp 1090
- Outside Diameter [ABKV]
- 1.031 Inches Minimum And 1.056 Inches Maximum
- Major Thickness [ABMC]
- 0.040 Inches Minimum And 0.044 Inches Maximum
- Material Document And Classification [MDCL]
- Fed Std 66, Comp 1066 Fed Std 1St Material Response And Fed Std 66, Comp 1070 Fed Std 3Rd Material Response And Fed Std 66, Comp 1072 Fed Std 4Th Material Response And Fed Std 66, Comp 1074 Fed Std 5Th Material Response And Fed Std 66, Comp 1075 Fed Std 6Th Material Response And Fed Std 66, Comp 1078 Fed Std 7Th Material Response And Fed Std 66, Comp 1080 Fed Std 8Th Material Response And Fed Std 66, Comp 1084 Fed Std 9Th Material Response And Fed Std 66, Comp 1086 Fed Std 10Th Material Response And Fed Std 66, Comp 1090 Fed Std 11Th Material Response
- Ring Style [ACXD]
- Internal
- Usage Design [ALBY]
- Internal
- Surface Treatment Document And Classification [STDC]
- Dod-P-16232 Def Stan/Spec Single Treatment Response
- Surface Treatment [SFTT]
- Phosphate
Weapon Systems (WSDC) 5325-01-160-4691
DLA Procurement Analysis 5325-01-160-4691
- Last Stock Position:
- 2254 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-01-160-4691
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5325-01-160-4691
Freight Information 5325-01-160-4691
5325-01-160-4691 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5325-01-160-4691 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-160-4691 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-160-4691 is not classified as a special type of cargo when transported by water. 5325-01-160-4691 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
