5325-01-155-2545

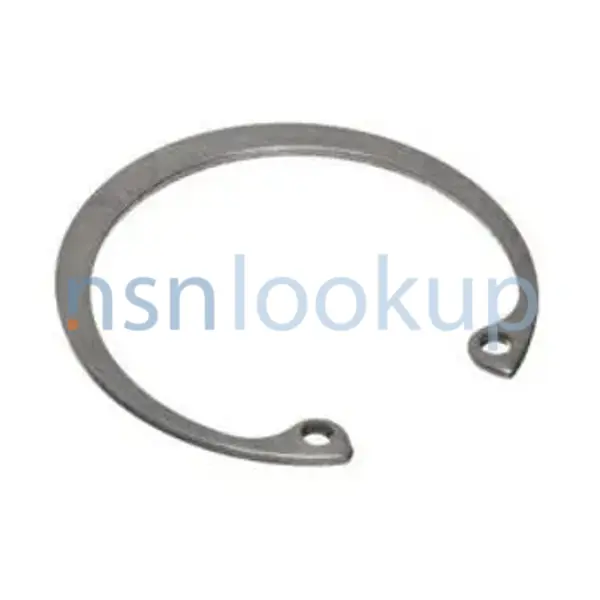

Retaining Ring
5325011552545 011552545 MS16625-4400 3000-X-400-SS2
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
May 2023
10
Marketplace 5325-01-155-2545
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-155-2545 5+ Documents (More...)
/fsg-53/fsc-5325/us
Photo 1/3 NSN 5325-01-155-2545 (Identification) 2/3 NSN 5325-01-155-2545 (Identification) 3/3 -
) 2/3 NSN 5325-01-155-2545 (Identification) 3/3 - United States (US) 4. 5325-01-155-2545 Marketplace
/fsg-53/fsc-5325/us
RNCC 4 RNVC 1 DAC E N1300-400AS 54963 - Seeger Inc https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-155-2545
Retaining Ring 5325011552545 011552545 for $1 a day Upgrade your Account Upgrade 5325-01-155-2545Retaining
/fsg-53/fsc-5325/us
Retaining Ring 5325011552545 011552545 Ring5325002363591 002363591 MIL-DTL-21248 MS16625-4400 https
ExpressionDepartment of the Navy (DN)IEReplaced By 5325-01-155-2545Department of the Navy (DN)NEReplaced By 5325-01-155-2545
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
Restrictions 5325-01-155-2545
5325-01-155-2545 is a Retaining Ring that has critical features such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined. This item is a US Munitions List or Commerce Control List Item where the Item Manager, Equipment Specialist or Product Specialist must provide special demilitarization instructions. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-155-2545
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-155-2545
- US Navy (N1HE)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- GG
Approved Sources 5325-01-155-2545
- Part Number
- Manufacturer
- Status
- 3000-X-400-SS2
- Manufacturer
- 97464 - Truarc Co Llc (Replaced)
- Original Design
- Original Design
- MS16625-4400
- 96906 - Military Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5325-01-155-2545
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Criticality Code Justification [CRTL]
- Zzzy
- Cross-Sectional Shape Style [AAGR]
- Rectangular
- Material Hardness Rating [ALME]
- 44.0 Rockwell C Minimum And 51.0 Rockwell C Maximum
- Material [MATT]
- Steel Corrosion Resisting
- Outside Diameter [ABKV]
- 4.359 Inches Minimum And 4.489 Inches Maximum
- Major Thickness [ABMC]
- 0.106 Inches Minimum And 0.112 Inches Maximum
- Reference Number Differentiating Characteristics [ZZZY]
- Material Will Be In Accordance With Ships Parts Control Center Activity Hx Quality Control,Manufacturing And Testing Specifications
- Ring Style [ACXD]
- Internal
- Usage Design [ALBY]
- Internal
DLA Procurement Analysis 5325-01-155-2545
Management Data 5325-01-155-2545
