5325-01-112-8047
Nonmetallic Grommet
5325011128047 011128047 803239-2 5082-4707 MP22 CD0002-004
An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING. View more Nonmetallic Grommet
May 2023
18
Marketplace 5325-01-112-8047
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5325-01-112-8047 5+ Documents (More...)
MP22 GROMMET,NONMETALLIC 2 EA NS Request Quotation Subscribe to View Vendor Details... 5082-4707 GROMMET
MP22 GROMMET,NONMETALLIC 400 EA NS Request Quotation 5082-4707 GROMMET,NONMETALLIC 1450 EA NS Request
Nonmetallic Grommet 5325011128047 011128047 Account Upgrade 5325-01-112-8047Nonmetallic Grommet5325011128047
011128047 803239-2 5082-4707 MP22 CD0002 GROMMET,NONMETALLIC 94 EA NS Request Quotation MP22 GROMMET
44 EA NS Request Quotation Subscribe to View Vendor Details... 5082-4707 GROMMET,NONMETALLIC 45 EA NS
Subscribe to View Vendor Details... 5082-4707 GROMMET,NONMETALLIC 1450 EA NS Request Quotation MP22
Nonmetallic Grommet 5325011128047 011128047 Account Upgrade 5325-01-112-8047Nonmetallic Grommet5325011128047
011128047 803239-2 5082-4707 MP22 CD0002 GROMMET,NONMETALLIC 94 EA NS Request Quotation MP22 GROMMET
-524L6 MP22-324M A component which converts available alternating current or direct current electrical
MP22-524L6 POWER SUPPLY 2 EA NS Request Quotation Updated Every Day 6130-00-945-6339 RQST NE Updated
Restrictions 5325-01-112-8047
5325-01-112-8047 is a Nonmetallic Grommet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-112-8047
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-112-8047
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Jun 2001
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 5325-01-112-8047
- Part Number
- Manufacturer
- Status
- MP22
- Manufacturer
- 58361 - General Instrument Corp (Obsolete)
- Original Design
- Original Design
- 803239-2
- 71744 - Chicago Miniature Lighting Llc (Active)
- Secondary Buy
- Secondary Buy
- 5082-4707
- 20434 - Spartech Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MP22
- 50522 - Monsanto Industrial Chemicals Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CD0002-004
- 22915 - Northrop Grumman Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 803239-2
- 96214 - Raytheon Company (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5325-01-112-8047
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Color [HUES]
- Black Overall
- Features Provided [CBBL]
- Sealing Ring
- Flange Thickness [ABKU]
- 0.025 Inches Nominal
- Groove Depth [ABGA]
- 0.265 Inches Nominal
- Groove Width [ABGF]
- 0.125 Inches Nominal
- Grommet Overall Length [CQZH]
- 0.365 Inches Nominal
- Grommet Construction Type [AGMU]
- Split

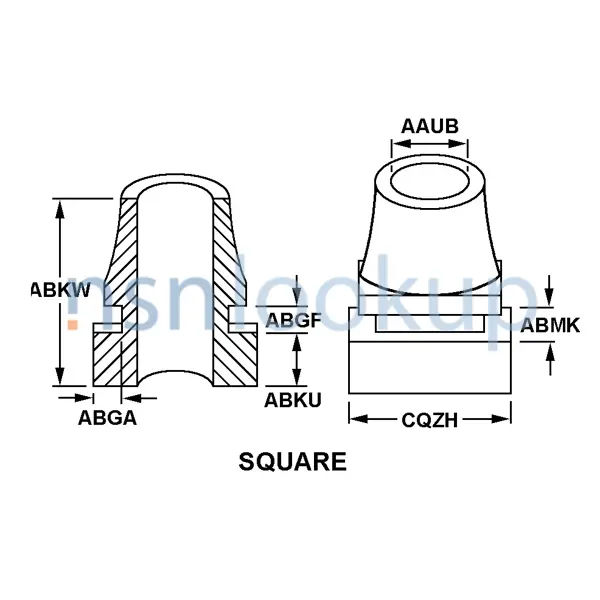

- Grommet Style [AGME]
- Square
- Hole Diameter [AAUB]
- 0.282 Inches Nominal
- Material [MATT]
- Plastic Polypropylene Overall
- Large Flange Outside Diameter [AGMF]
- 0.310 Inches Nominal
- Overall Height [ABKW]
- 0.265 Inches Nominal
- Overall Width [ABMK]
- 0.165 Inches Nominal
DLA Procurement Analysis 5325-01-112-8047
Management Data 5325-01-112-8047
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Jan 2010
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Oct 2009
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
Similar Supply Items to 5325-01-112-8047
Freight Information 5325-01-112-8047
5325-01-112-8047 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-01-112-8047 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-112-8047 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 5325-01-112-8047 is not classified as a special type of cargo when transported by water. 5325-01-112-8047 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-01-112-8047
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5325-01-112-8047 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
