5325-01-101-5621
Positive Lock Stud
5325011015621 011015621 SM-B-447106
A quick disconnecting item with a circumferential groove at one end that is inserted into a RECEPTACLE, POSITIVE LOCK for positive fastening. View more Positive Lock Stud
January 2023
14
Marketplace 5325-01-101-5621
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-101-5621 5+ Documents (More...)
RQST NE Updated Every Day 5325-01-101-5621 RQST Updated Every Day 5325-01-101-5621 RQST NE Related Documents
5325-01-101-5621 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-101-5621
Positive Lock Stud 5325011015621 011015621 a day Upgrade your Account Upgrade 5325-01-101-5621Positive
Lock Stud5325011015621 011015621 SM-B-447106 www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-101-5621
-297- https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-101-5621 Positive Lock Stud 5325011015621
011015621 a day Upgrade your Account Upgrade 5325-01-101-5621Positive Lock Stud5325011015621 011015621
Positive Lock Stud 5325011015621 011015621 Restrictions Approved Sources Datasheet Management https
Positive Lock Stud 5325011015621 011015621 RQST NE Updated Every Day 5325-01-101-5621 RQST Updated
Every Day 5325-01-101-5621 RQST NE Related Documents 5325-01-101-5621 5+ Documents ( More... ) https
Restrictions 5325-01-101-5621
5325-01-101-5621 is a Positive Lock Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-01-101-5621
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-101-5621
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5325-01-101-5621
- Part Number
- Manufacturer
- Status
- SM-B-447106
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-01-101-5621
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- End Overall Length [AGQM]
- 0.396 Inches Minimum And 0.411 Inches Maximum
- Head Diameter [AASL]
- 0.156 Inches Nominal
- Material [MATT]
- Steel Uns S30300 Or Steel Comp303pb Overall
- Major Diameter Length [AGQK]
- 0.152 Inches Minimum And 0.153 Inches Maximum
- Material Document And Classification [MDCL]
- Astm A582 National Spec 1St Material Response Overall Or Qq-S-764,Cond A Fed Spec 2Nd Material Response Overall
- Positive Lock Stud Head Style [AGQJ]
- Stud Head
- Positive Lock Stud Shank Style [AGQN]
- Stud Shank
- Shank Major Diameter [AGQP]
- 0.144 Inches Minimum And 0.146 Inches Maximum
- Shoulder Height [ABMG]
- 0.032 Inches Nominal
- Undercut Diameter [ABPA]
- 0.146 Inches Minimum And 0.148 Inches Maximum
- Undercut Length [AGQL]
- 0.012 Inches Minimum And 0.014 Inches Maximum

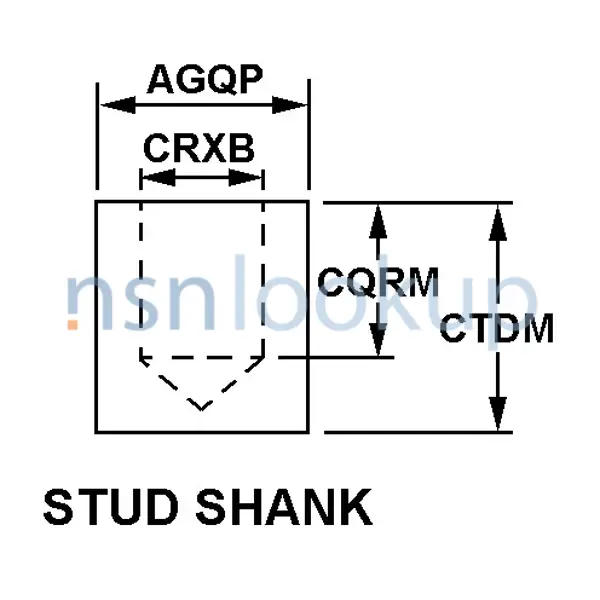

- Stud Shank Hole Depth [CQRM]
- 0.078 Inches Minimum And 0.125 Inches Maximum
- Stud Shank Hole Diameter [CRXB]
- 0.116 Inches Nominal
- Stud Shank Overall Height [CTDM]
- 0.155 Inches Minimum And 0.165 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
NATO Stock Numbers Related to 5325-01-101-5621
Freight Information 5325-01-101-5621
5325-01-101-5621 has freight characteristics managed by Portugal.. 5325-01-101-5621 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
