5325-01-099-8880
Retaining Ring
5325010998880 010998880 A43720 401367 199171
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
November 2023
8
Marketplace 5325-01-099-8880
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-099-8880 5+ Documents (More...)
(Identification) 1/2 NSN 5325-01-099-8880 (Identification) 2/2 - - 1.
Every Day 199171 RQST NE Updated Every Day 5325-01-099-8880 RQST NE Updated Every Day 5325-01-099-8880
JavaScript in your web browser . 4730-99-423-2545Pi Straight Adaptor4730994232545 994232545 DGSA4-401367
JavaScript in your web browser . 4730-99-423-2545Pi Straight Adaptor4730994232545 994232545DGSA4-401367
Machine Bolt 5306007767440 007767440,401367 455-8481 Part NumberManufacturerStatus0611-401367 https
JavaScript in your web browser . 4730-99-423-2545Pi Straight Adaptor4730994232545 994232545DGSA4-401367
JavaScript in your web browser . 4730-99-423-2545Pi Straight Adaptor4730994232545 994232545DGSA4-401367
JavaScript in your web browser . 4730-99-423-2545Pi Straight Adaptor4730994232545 994232545DGSA4-401367
https//www.nsnlookup.com /fsg-53/fsc-5342/us 5342-01-671-9707 Grooved Clamp Coupling 5342016719707 401367
Documents 5342-01-671-9707 1+ Documents ( More... https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-099-8880
Restrictions 5325-01-099-8880
5325-01-099-8880 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-01-099-8880
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-099-8880
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2006
Approved Sources 5325-01-099-8880
- Part Number
- Manufacturer
- Status
- A43720
- Manufacturer
- 10988 - Cnh Industrial America Llc (Active)
- Source Control
- Source Control
- 401367
- 04994 - Trw Canada Ltdautomotive Aftermarket (Active)
- Primary Buy
- Primary Buy
- 199171
- 30076 - Hyster-Yale Group, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 199171
- 04627 - Hyster-Yale Group, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5325-01-099-8880
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened

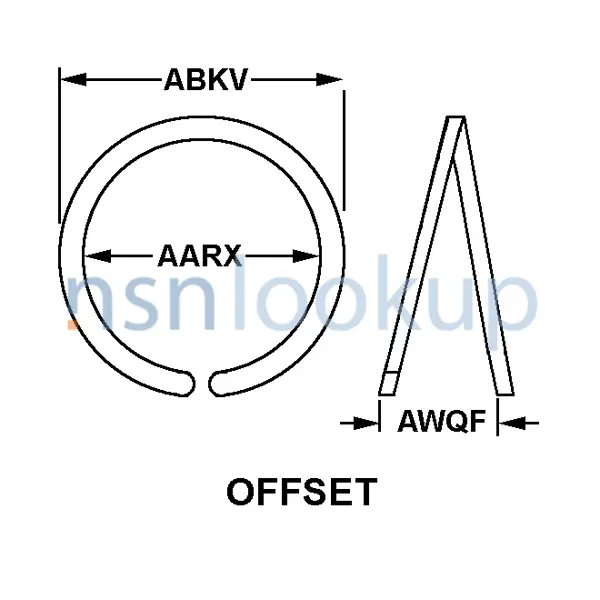

- Cross-Sectional Shape Style [AAGR]
- Rectangular
- End Play Takeup [AWQF]
- 0.400 Inches Nominal
- Material [MATT]
- Steel,401340,Ross Gear Div,Trw
- Inside Diameter [AARX]
- 0.810 Inches Nominal
- Ring Style [ACXD]
- Offset
- Usage Design [ALBY]
- External
Weapon Systems (WSDC) 5325-01-099-8880
DLA Procurement Analysis 5325-01-099-8880
- Last Stock Position:
- 11 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-01-099-8880
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5325-01-099-8880
Freight Information 5325-01-099-8880
5325-01-099-8880 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5325-01-099-8880 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-099-8880 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-099-8880 is not classified as a special type of cargo when transported by water. 5325-01-099-8880 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-01-099-8880
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5325-01-099-8880 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
