5325-01-093-0014
Turnlock Fastener Receptacle
5325010930014 010930014 1219-L4305-Z3Y SL4-305
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
June 2023
5
Marketplace 5325-01-093-0014
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-093-0014 4+ Documents (More...)
(Identification) 1/3 NSN 5325-01-093-0014 (Identification) 2/3 NSN 5325-01-093-0014 (Identification
SL4-305 RECEPTACLE,TURNLOCK FASTENER 114 EA NS Request Quotation Updated Every Day 5325-01-093-0014 RQST
Updated Every Day 5325-14-456-9011 RQST Updated Every Day 5325-14-456-9011 RQST NE Related Documents SL4-305
RECEPTACLE,TURNLOCK FASTENER 114 EA NS Request Quotation Updated Every Day 5325-01-093-0014 https
www.nsnlookup.com /fsg-53/fsc-5325/fr 5325-14-456-9011 Turnlock Fastener Receptacle 5325144569011 SL4-305
RECEPTACLE,TURNLOCK FASTENER 114 EA NS Request Quotation Updated Every Day 5325-01-093-0014 RQST
Turnlock Fastener Receptacle 5325010930014 Upgrade your Account Upgrade 5325-01-093-0014Turnlock
Fastener Receptacle5325010930014 010930014 1219-L4305 www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-
Restrictions 5325-01-093-0014
5325-01-093-0014 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-01-093-0014
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HDKE
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5325-01-093-0014
- Part Number
- Manufacturer
- Status
- SL4-305
- Manufacturer
- 72794 - Southco Inc (Active)
- Original Design
- Original Design
- 1219-L4305-Z3Y
- 72794 - Southco Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5325-01-093-0014
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Material [MATT]
- Steel Overall
- Lockspring Style [AGRL]
- Lockspring

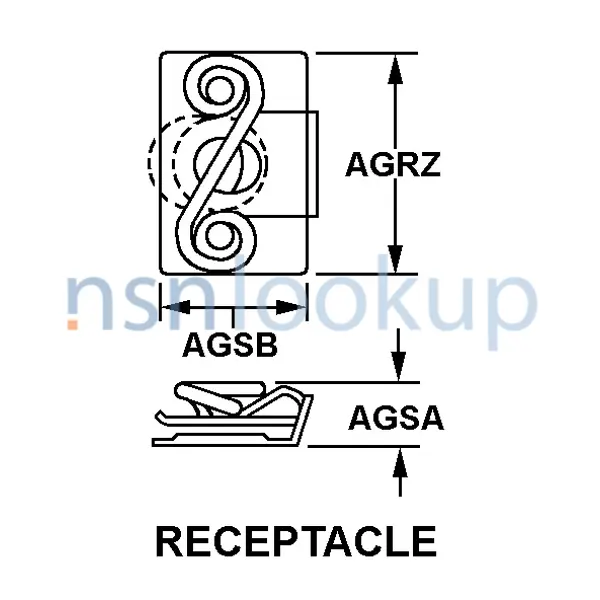

- Receptacle Height [AGSA]
- 0.305 Inches Nominal
- Receptacle Overall Length [AGRZ]
- 1.120 Inches Nominal
- Receptacle Width [AGSB]
- 0.760 Inches Nominal
- Turnlock Mounting Hole Diameter [CSYB]
- 0.515 Inches Minimum
- Turnlock Receptacle Style [AGRY]
- Receptacle
- Surface Treatment [SFTT]
- Zinc Overall
Weapon Systems (WSDC) 5325-01-093-0014
DLA Procurement Analysis 5325-01-093-0014
Management Data 5325-01-093-0014
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5325-01-093-0014
Freight Information 5325-01-093-0014
5325-01-093-0014 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-01-093-0014 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-01-093-0014 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-093-0014 is not classified as a special type of cargo when transported by water. 5325-01-093-0014 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-01-093-0014
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 5325-01-093-0014 2 Records
Contracting Technical Data File (CTDF) 5325-01-093-0014 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
