5325-01-086-5677
Turnlock Fastener Stud Assembly
5325010865677 010865677 0N365148 PVS3-1/2-44IB 0N365148-1 3522-S44-C3C PVS3-1-2-44 PVS35-44
A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER. View more Turnlock Fastener Stud Assembly
November 2023
18
Marketplace 5325-01-086-5677
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-086-5677 4+ Documents (More...)
RQST NE Updated Every Day 5325-01-086-5677 RQST Updated Every Day 5325-01-086-5677 RQST NE Related Documents
5325-01-086-5677 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-086-5677
Upgrade 5325-01-505-3104Turnlock Fastener Stud Assembly5325015053104 0150531043522-S44-EEB PVS35-44
https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-086-5677 Turnlock Fastener Stud Assembly 010865677
Account Upgrade 5325-01-505-3104Turnlock Fastener Stud Assembly5325015053104 0150531043522-S44-EEB PVS35-44
Turnlock Fastener Stud Assembly 010865677 -44IB0N365148-13522-S44-C3CPVS3-1-2-44PVS35-44 https/
Turnlock Fastener Stud Assembly 010865677 fsg-53/fsc-5325/uk 5325-99-638-2562 Turnlock Fastener
Restrictions 5325-01-086-5677
5325-01-086-5677 is a Turnlock Fastener Stud Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-086-5677
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-086-5677
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Australia (ZA01)
- Effective Date:
- 7 Dec 1995
- New Zealand (ZE01)
- Effective Date:
- 1 Nov 1998
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5325-01-086-5677
- Part Number
- Manufacturer
- Status
- 3522-S44-C3C
- Manufacturer
- 72794 - Southco Inc (Active)
- Primary Buy
- Primary Buy
- PVS3-1-2-44
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- PVS35-44
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 0N365148
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- PVS3-1/2-44IB
- 72794 - Southco Inc (Active)
- Advisory Reference
- Advisory Reference
- 0N365148-1
- 98230 - National Security Agency (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5325-01-086-5677
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Drive Type [AKCV]
- Slotted
- Diameter [ABMZ]
- 0.373 Inches Minimum And 0.375 Inches Maximum
- Eyelet Length [AGRK]
- 0.140 Inches Maximum
- Eyelet Outside Diameter [AGRH]
- 0.253 Inches Minimum And 0.257 Inches Maximum
- Material [MATT]
- Steel Comp 1118 Overall
- Material Accommodated Thickness [AGSM]
- 0.125 Inches Nominal

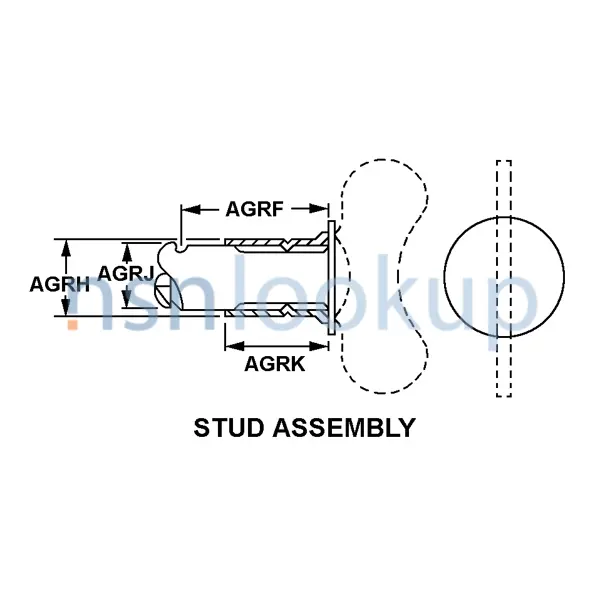

- Turnlock Stud Head Style [AGRD]
