5325-01-020-2747
Screw Thread Insert
5325010202747 010202747 69815-4-3 951D-04SE0187 L403-7-3
A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE View more Screw Thread Insert
May 2023
7
Marketplace 5325-01-020-2747
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-020-2747 2+ Documents (More...)
L403-7-3 INSERT,SCREW THREAD 100 EA NS Request Quotation Subscribe to View Vendor Details... 69815-4-
Day 5325-01-020-2747 RQST Updated Every Day 5325-01-020-2747 RQST NE Related Documents 5325-01-020-2747
Screw Thread Insert 5325010202747 010202747 Upgrade your Account Upgrade 5325-01-020-2747Screw
Thread Insert5325010202747 010202747 69815-4-3 951D NumberManufacturerStatus69815-4-3 73030 - Hamilton
Restrictions 5325-01-020-2747
5325-01-020-2747 is a Screw Thread Insert that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-01-020-2747
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-01-020-2747
- National Security Agency (DGX1)
- Effective Date:
- 1 Jan 2014
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2014
- Supplementary Collaborators:
- HDKEHX
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5325-01-020-2747
- Part Number
- Manufacturer
- Status
- 69815-4-3
- Manufacturer
- 73030 - Hamilton Sundstrand Corporation (Active)
- Source Control
- Source Control
- 951D-04SE0187
- 01556 - Emhart Teknologies Llc (Active)
- Original Design
- Original Design
- L403-7-3
- 01556 - Emhart Teknologies Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete

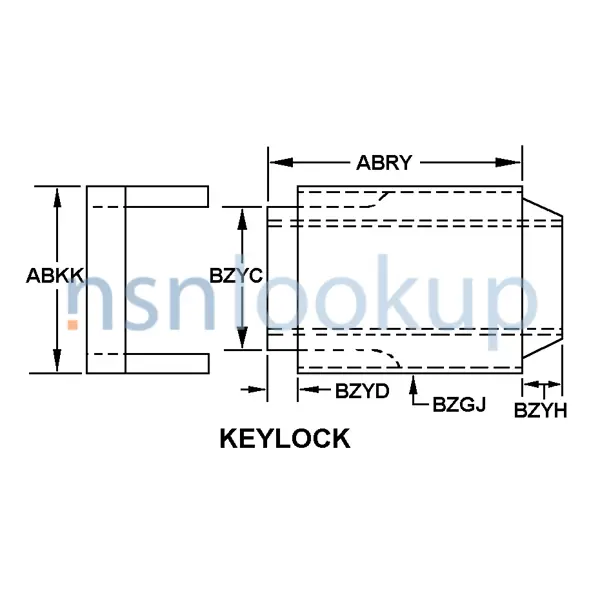

Datasheet 5325-01-020-2747
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- Bottom Portion Unthreaded Outside Length [BZYH]
- 0.031 Inches Nominal
- Features Provided [CBBL]
- Individually Keyed
- Material [MATT]
- Steel Comp 303 Overall
- Insert Size [BZGJ]
- 0.190-32 Unf 3A Rh
- Length [ABRY]
- 0.173 Inches Minimum And 0.203 Inches Maximum
- Material Document And Classification [MDCL]
- Aisi Assn Std Single Material Response Overall
- Top Portion Unthreaded Outside Length [BZYD]
- 0.027 Inches Minimum And 0.037 Inches Maximum
- Top Unthreaded Portion Outside Diameter [BZYC]
- 0.125 Inches Minimum And 0.135 Inches Maximum
- Style Designator [STYL]
- Keylock
- Surface Treatment [SFTT]
- Passivate Overall
Weapon Systems (WSDC) 5325-01-020-2747
DLA Procurement Analysis 5325-01-020-2747
Management Data 5325-01-020-2747
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-01-020-2747
Freight Information 5325-01-020-2747
5325-01-020-2747 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5325-01-020-2747 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5325-01-020-2747 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-01-020-2747 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-01-020-2747 is not classified as a special type of cargo when transported by water. 5325-01-020-2747 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5325-01-020-2747 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
