5325-01-019-8958
Turnlock Fastener Receptacle
5325010198958 010198958 26R2-5 7902
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
November 2023
4
Marketplace 5325-01-019-8958
Request a Quotation from participating marketplace vendors
Related Documents 5325-01-019-8958 3+ Documents (More...)
(Identification) 1/2 NSN 5325-01-019-8958 (Identification) 2/2 - - 1.
United States (US) 4. 5325-01-019-8958 Marketplace Restrictions Approved Sources Datasheet Management
Turnlock Fastener Receptacle 5325010198958 day Upgrade your Account Upgrade 5325-01-019-8958Turnlock
Fastener Receptacle5325010198958 010198958 26R2 /www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-019-8958
Restrictions 5325-01-019-8958
5325-01-019-8958 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-01-019-8958
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5325-01-019-8958
- Part Number
- Manufacturer
- Status
- 26R2-5
- Manufacturer
- 71286 - Howmet Global Fastening Systems Inc (Active)
- Primary Buy
- Primary Buy
- 7902
- 19645 - Data Device Corp (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5325-01-019-8958
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400

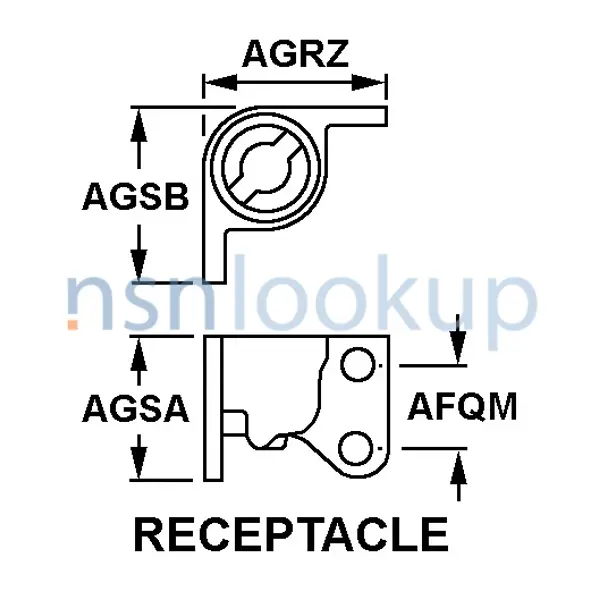

- Center To Center Distance Between Mounting Holes [ABTH]
- 0.332 Inches Minimum And 0.338 Inches Maximum
- Distance Between Mounting Hole Centers [AFQM]
- 0.332 Inches Minimum And 0.338 Inches Maximum
- Features Provided [CBBL]
- Protective Cap
- Material Document And Classification [MDCL]
- Qq-A-591 Alloy 518.0 Fed Spec Single Material Response Overall
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Material [MATT]
- Aluminum Alloy Overall
- Receptacle Overall Length [AGRZ]
- 0.820 Inches Minimum And 0.850 Inches Maximum
- Receptacle Width [AGSB]
- 0.820 Inches Minimum And 0.850 Inches Maximum
- Receptacle Height [AGSA]
- 0.610 Inches Minimum And 0.640 Inches Maximum
- Turnlock Mounting Hole Diameter [CSYB]
- 0.096 Inches Minimum And 0.102 Inches Maximum
- Turnlock Receptacle Style [AGRY]
- Receptacle
- Surface Treatment Document And Classification [STDC]
- Ams2468 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Anodize Overall
